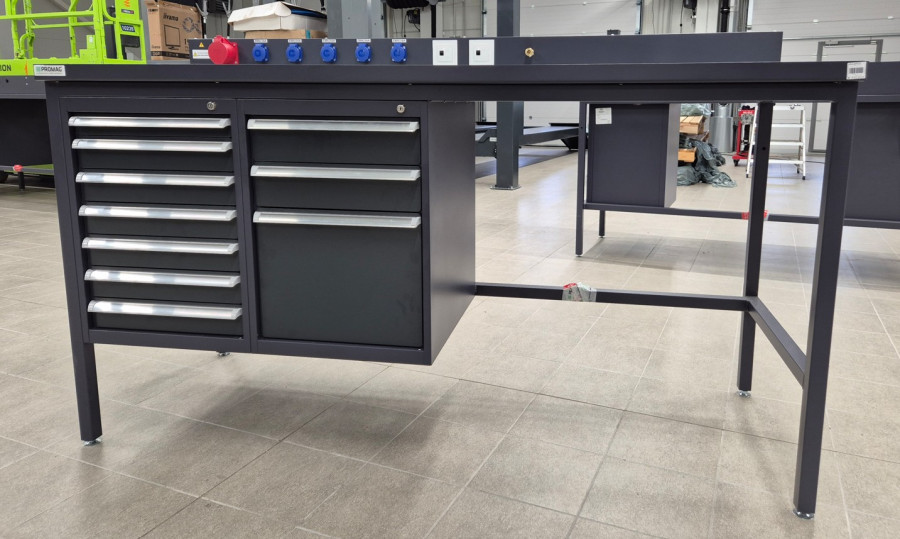

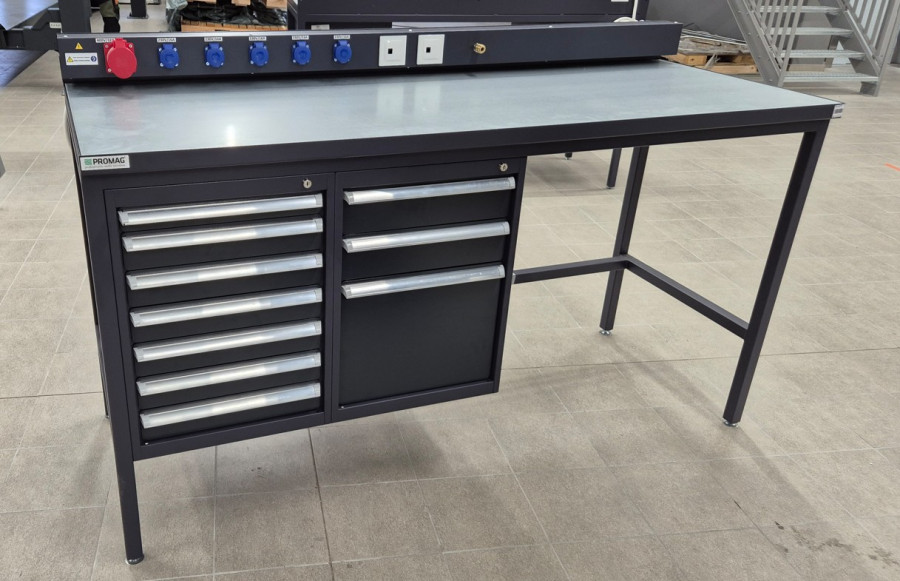

Workbench PSS 2000x1080x750mm RAL7024/7016_01, Promag
Produkta kods:06-1036-4152&PROMAG
Tehniskā specifikācijaTechnical data:
dimensions (L x H x D) 2000x1080x750mm
construction from square profiles 40x40x2 mm
load capacity 1500 kg
top made of #36mm plywood covered with galvanized sheet, embedded in metal angle bracket

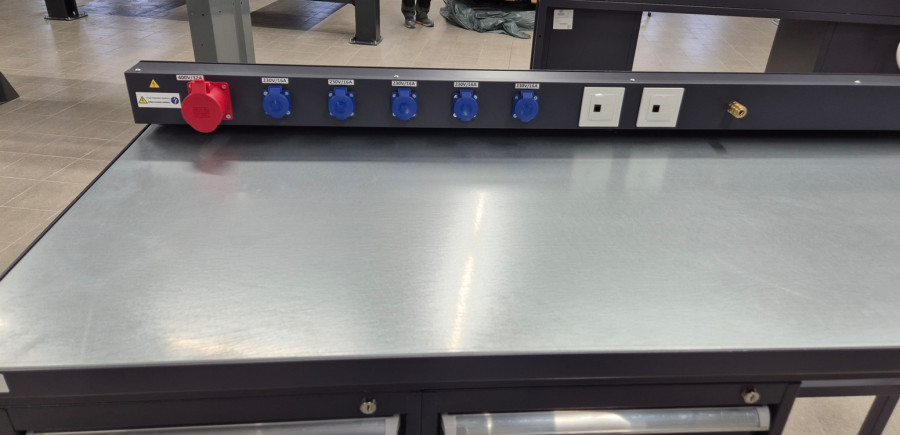

on the rear protruding angle mounted switchboard equipped with:
5 x electrical sockets 230V
1 x electrical socket 400V 32A
1 x air connection
power supply
2 x data plug in (RJ)
under top equipment (modules on the left side):
L8 (L=500mm): 1 drawer h=60mm, 6 drawers h=90mm
each drawer h=60mm equiped with galvanized partitions
L7 (L=500mm): 2 drawers h=120mm, 1 drawer h=360mm
each drawer h=360mm equiped with galvanized partitions h=180mm
load capacity of drawers 100kg
100% extension
on the right side, space for the Customer's cart with dimensions 970x910x470mm (HxLxD)
metal regulators for leveling
color: construction RAL 7024, fronts RAL 7016
