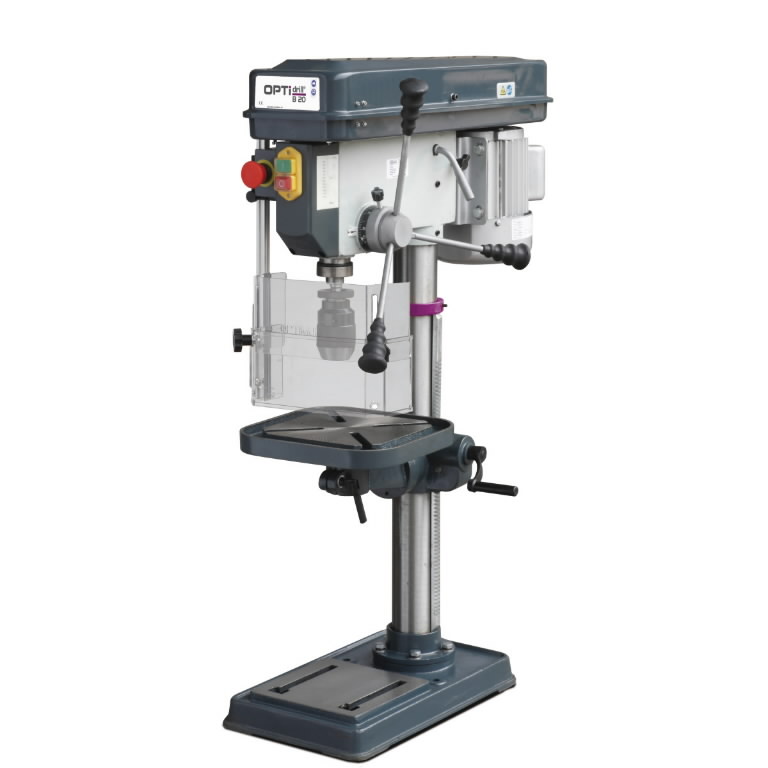

Urbjmašīna OPTIdrill B 20 230V, Optimum
Produkta kods:3008201&OPTIMUM
Tehniskā specifikācijaDrilling performance
Drilling performance steel (S235JR)20 mm
Continuous drilling performance steel (S235JR)18 mm
Drilling table
Workspace length275 mm
Workspace width275 mm
T-groove typediagonal
T-groove size14 mm
Max. distance spindle - drilling table465 mm
Electric Data
Supply voltage230 V
Phase(s)1 Ph
Current typeAC
Mains frequency50 Hz
Machine base
Max. distance spindle - machine base645 mm
Work area length205 mm
Work area width200 mm
Motor(s)
Spindle motor drive output0.55 kW
Speed range
Speed range210 – 2220 min¯¹
Number of gears12 Stages
Spindle
Quill stroke80 mm
Spindle chuckMT 2
Reach 170 mm
Drilling performance steel (S235JR)20 mm
Continuous drilling performance steel (S235JR)18 mm
Drilling table
Workspace length275 mm
Workspace width275 mm
T-groove typediagonal
T-groove size14 mm
Max. distance spindle - drilling table465 mm
Electric Data
Supply voltage230 V
Phase(s)1 Ph
Current typeAC
Mains frequency50 Hz
Machine base
Max. distance spindle - machine base645 mm
Work area length205 mm
Work area width200 mm
Motor(s)
Spindle motor drive output0.55 kW
Speed range
Speed range210 – 2220 min¯¹
Number of gears12 Stages
Spindle
Quill stroke80 mm
Spindle chuckMT 2
Reach 170 mm
