Tehniskā specifikācijaProduct description

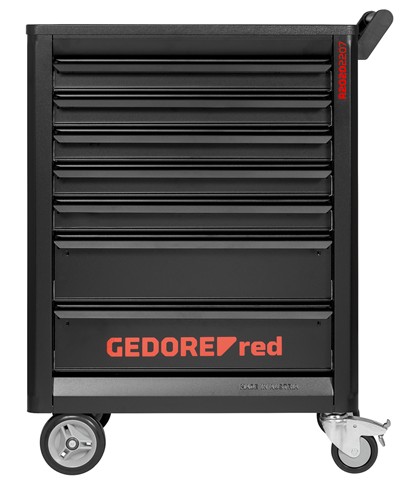

Body:
Sheet steel, corrosion-resistant and scratch-resistant powder-coated
Working platform with cover made of ABS plastic with 4 compartments for small parts
Manoeuvrable and easy to control thanks to the driving and steering handle
Side panels with Euro perforation 10 x 38 mm for attaching accessories
Drawers:
Central locking with cylinder lock
Each drawer with safety locking, single-hand operation
5 drawers with internal dimensions (W 563 x D 398 x 70 mm)
2 drawers with internal dimensions (W 478 x D 310 x 74 mm)
All drawers with full extension and ball bearing guide rails
Load capacity per drawer 40 kg
GEDORE chassis:
Total load capacity 400 kg
2 roller-bearing GEDORE high-performance wheels (fixed castors Ø 140 mm)
2 ball-bearing GEDORE smooth-running wheels (swivel castors Ø 100 mm), one of which has a total brake
The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads
Range:
Extensive range for industry, trade, automotive and the advanced do-it-yourselfer
Metric dimension tools
Clearly arranged in GEDORE red foam modules
With check tool system: Completeness check using 2-colored foam inserts
Dimensions and weights
Total width [mm]: 470 mm
Total height [mm]: 999 mm
Total length [mm]: 790 mm
Weight [kg]: 88,5 kg
Scope of delivery

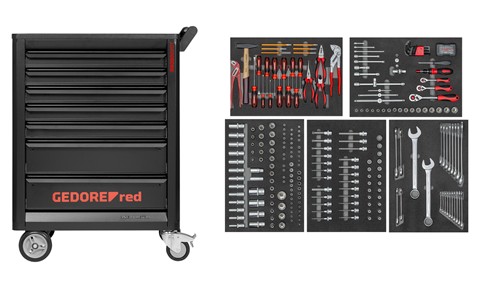

Parts list (Text): Tool trolley GEDMaster 7 drawers 1/4" 2C-Reversible ratchet L.150mm, 1/4" Extension L.50mm, 1/4" Extension L.100mm 1/4" Extension L.150mm, 1/4" Sliding T-bar with slider L.115mm, 1/4" Universal joint L.33mm, 1/4" Driving handle L.62mm 2C-handle, 1/4" Bit-Adapter square x hexagon L.24.7mm, 1/4" Bit-Box SL+PH+PZ+TX+hexagon 32 pcs, 1/4" Ratchet screwdriver with telescopic blade, 3/8" 2C-Reversible ratchet L.180mm, 3/8" Socket hexagon 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22, 3/8" Extension L.125mm, 3/8" Extension L.150mm, 3/8" Sliding T-bar with slider, Convertor 3/8" x 1/2" square L.44mm, Reducer 3/8" to 1/4", 1/2" 2C-Reversible ratchet L.250mm, 1/2" Universal joint L.66mm, 1/2" Extension L.75mm, 1/2" Extension L.125m, 1/2" Extension L.250m, 1/2" Sliding T-bar with slider, Hexagon socket key set hexagon.5-10mm 9 pcs 1/4" Socket hexagon 4 4,5 5 5,5 6 7 8 9 10 11 12 13 14 L.25mm, 1/4" Socket hexagon 4 4,5 5 5,5 6 7 8 9 10 11 12 13 L.50mm, 1/4" Socket TX E5 E6 E7 E8 E10 L.25mm, 1/4" Screwdriver bit socket 3 4 5 6 L.37mm, 1/4" Screwdriver bit socket PH1 PH2 L.37mm, 1/4" Screwdriver bit socket PZ1 PZ2 L.37mm, 1/4" Screwdriver bit socket SC 5,5 6,5 L.37mm, 1/4" Screwdriver bit socket TX BO T10 T15 T20 T25 T27 T30, 1/4" Screwdriver bit socket TX T10 T15 T20 T25 T27 T30 T40, 1/2" Socket hexagon 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 24 27 32, 1/2" Socket hexagon 10 11 12 13 14 15 16 17 18 19 20 21 22 24 27 30 32, 1/2" Socket TX E8 E10 E11 E12 E14 E16 E18 E20 E22 E24, 1/2" Spark plug socket 16 21 1/2" Screwdriver bit socket 4 5 6 7 8 9 10 11 12 14 17 19 L.55mm, 1/2" Screwdriver bit socket 5 6 7 8 10 12 14 17 L.100mm, 1/2" Screwdriver bit socket TX T20 T25 T27 T30 T40 T45 T50 T55 T60 L.55mm, 1/2" Screwdriver bit socket TX T20 T25 T27 T30 T40 T45 T50 T55 T60 L.100mm, 1/2" Screwdriver bit socket XZN M5 M6 M8 M10 M12 M14 M16 Combination pliers L.180mm 2C-handle, Side cutter L.160mm 2C-handle, Telephone plier straight L.200mm 2C-handle, 2C-Screwdriver slot 3 4 5,5 6,5, 2C-Screwdriver PH1 PH2, 2C-Screwdriver TX T10 T15 T20 T25 T30 T40, Water pump pliers 10", Engineer's hammer 300g L.300mm, Drift punch octagonal 120x4mm Ø12mm, Centre punch octagonal 120x4mm Ø10mm, Pin punch octagonal 150x4mm Ø10mm, Flat chisel flat oval 125x15x9mm, Flat chisel flat oval 150x18x11mm, Cross cut chisel flat oval, Pliers wrench 10" Combination spanner 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 24 27 30 32 , Combination ratchet spanner 10 13 17 19
Contents (Qty of pieces): 273
Technical characteristics
Number of drawers: 7
Colour: deep black
Material: Steel sheet
RAL colour tone: RAL 9005
Compliance: compliant
Drawer type: 5xType 1, H=70mm 2xType 2, H=145mm
Static load carrying capacity [kg]: 400 kg
Load capacity per drawer [kg]: 40 kg
