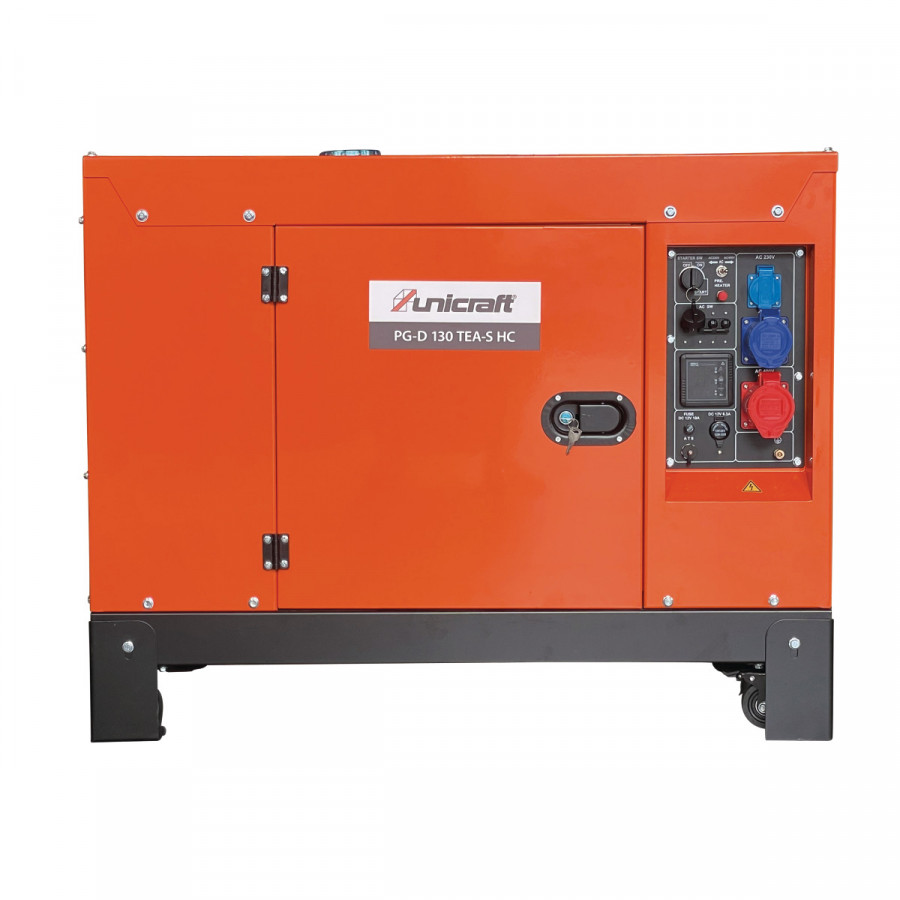

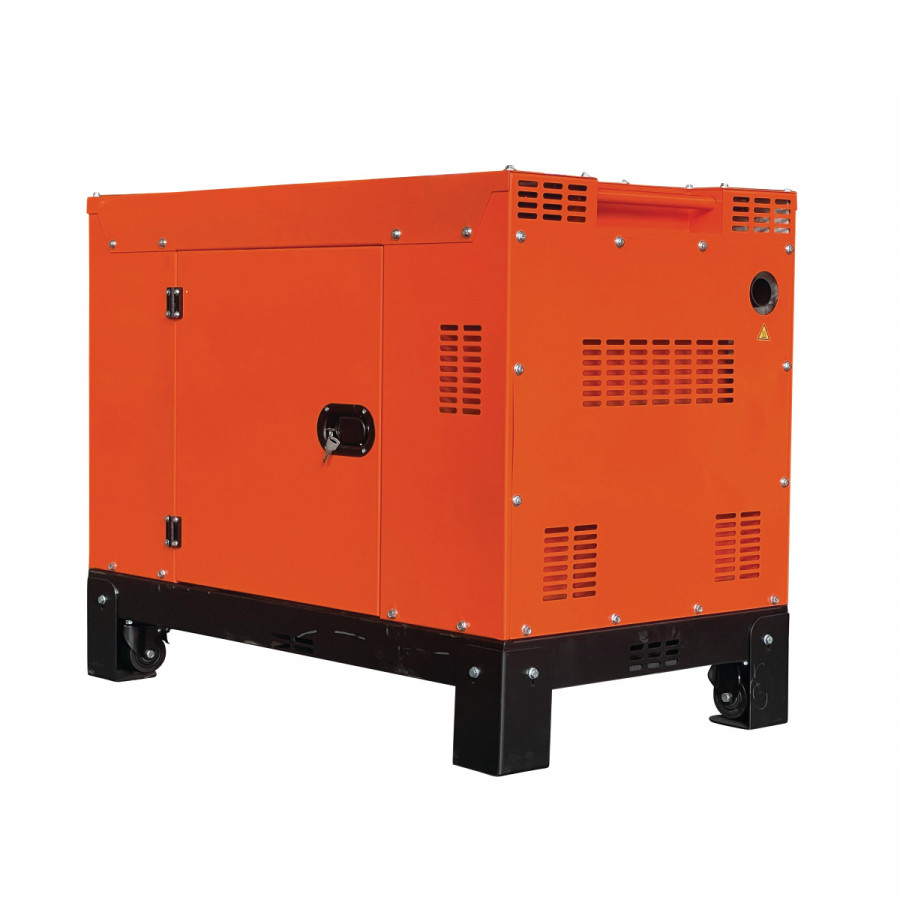

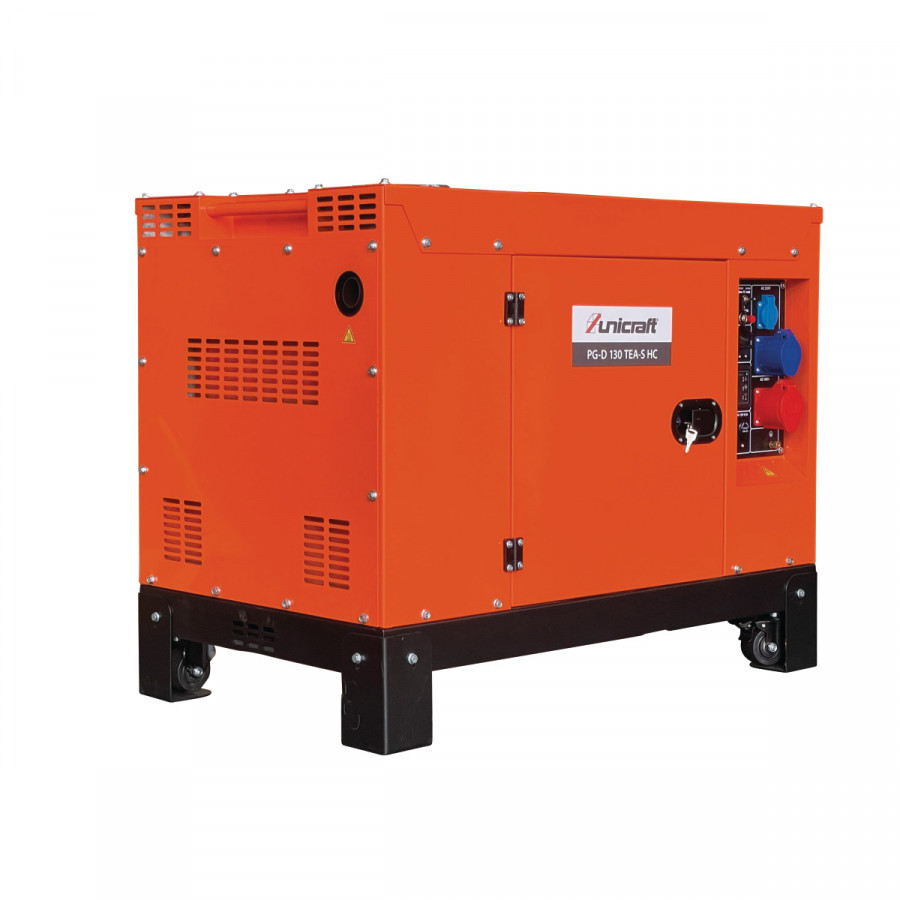

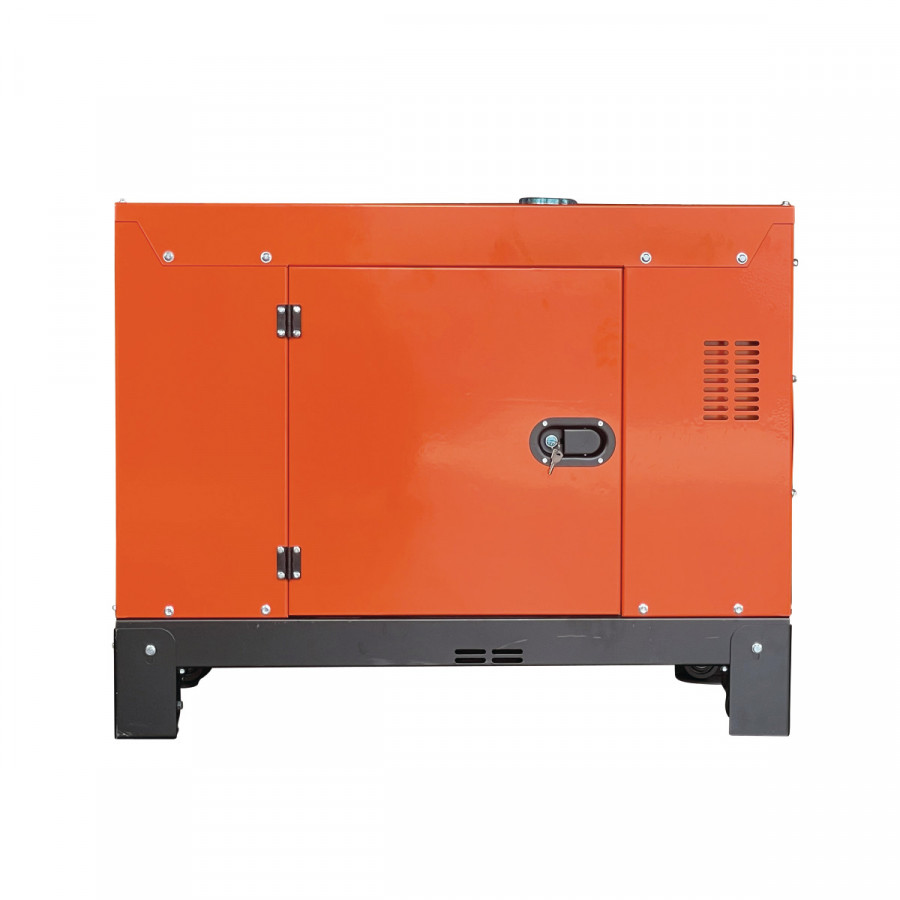

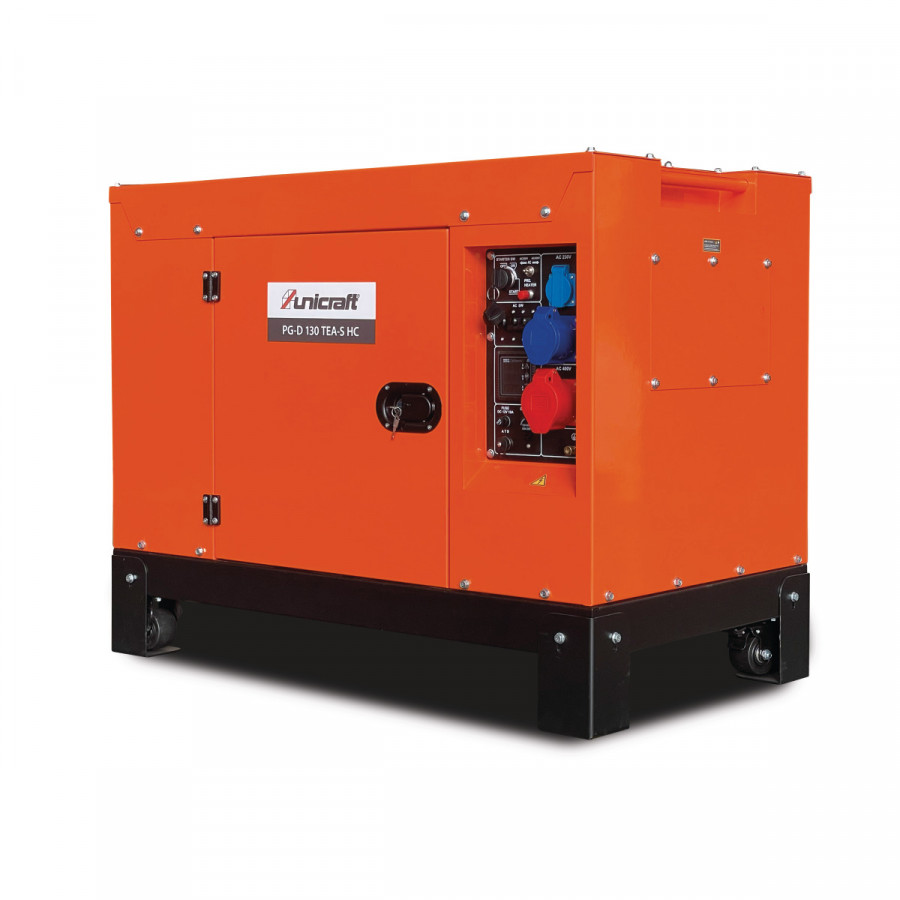

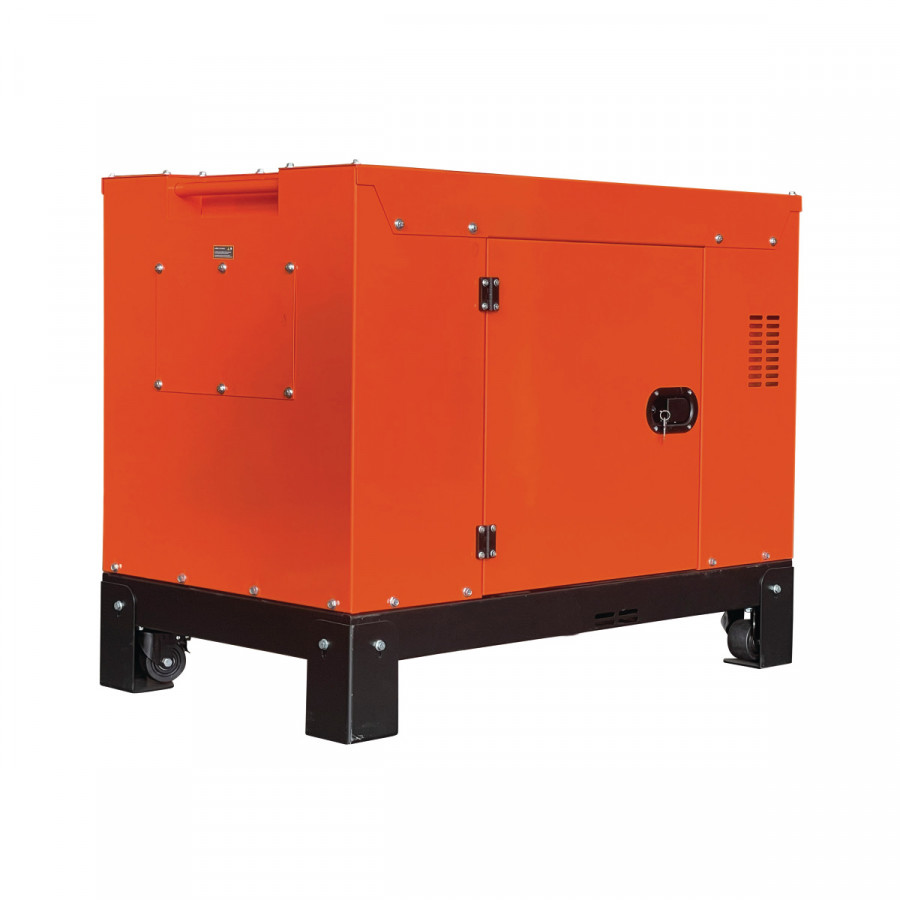

Synchronous power generator PG-D 130 TEA-S HC, Unicraft
Produkta kods:6731130&UC
Tehniskā specifikācijaDiesel power generator for home feeding
Suitable for house power supply with manual mains disconnector switch
Also equipped with connection for automatic mains isolator switch
The Equal Power function enables a much higher output power in 230V: With most generators the output power in 230V is approx. 30% of the output power in 400V. With the Equal Power function, an output power in 230V of approx. 80% is achieved!
Sound-insulated diesel engine (complies with noise and exhaust emission regulations)

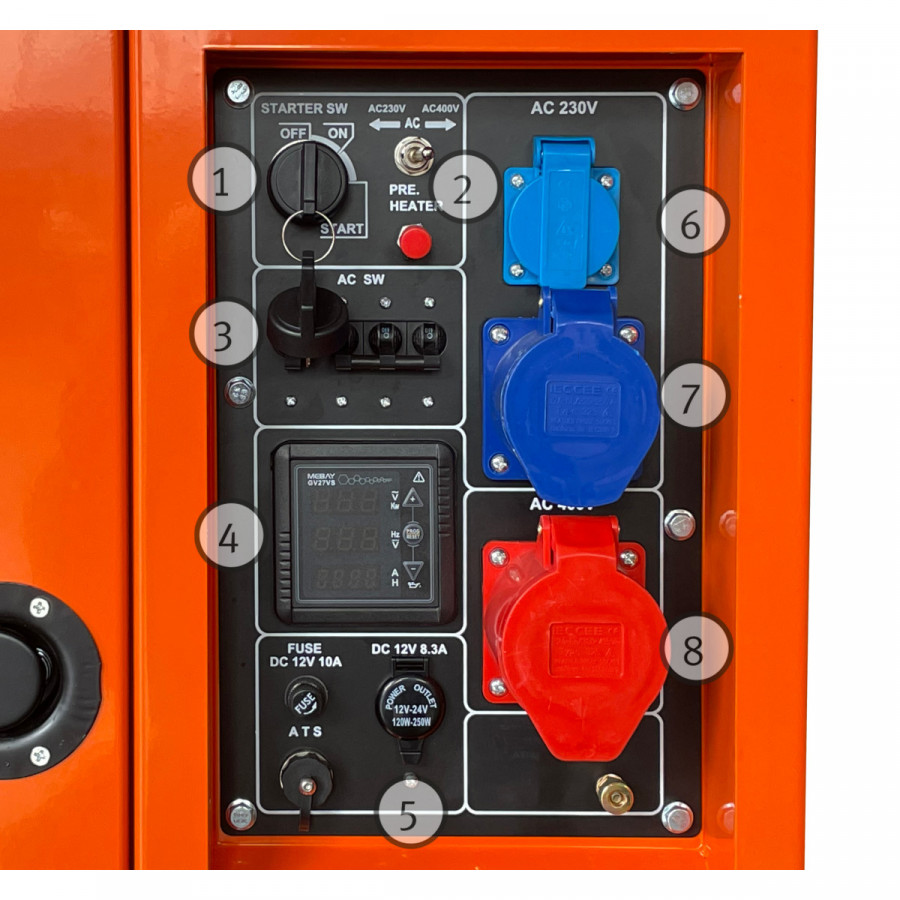

Connections ergonomically located on the side of the unit in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
Splash and impact protection due to full enclosure
Electronic voltage regulation AVR
Low oil level indicator
Long running times due to large 25 liter tank
Comfortable starting at the push of a button with E-Start
With pre-heater for fast and trouble-free starting even at cold temperatures
Stable chassis with two swivel castors
Drive 2V92
Power factor 0.8Cos ɸ
Starter E-Start
Fuel diesel
Tank capacity 25l
Running time at 50% load 7h
Oil tank capacity 3,8l
Sound pressure level Lp 73dB(A)
Sound power level Lw 97dB(A)
Max. shift load 30%
Mains frequency 50Hz
Type Synchronous
Nominal voltage 230/400V
Limited output power (active power) 13,4kW
Continuous output power (active power) 10,7kW
Speed generator 3000min¯¹
Generator IP degree of protection IP 23
Socket type 1x 230V 16A Schuko / 1x 230V 32A CEE / 1x 400V 32A CEE / 1x 12V DC
Socket IP degree of protection IP 44
Dimensions 1115x675x800mm
Net weigth 310kg
