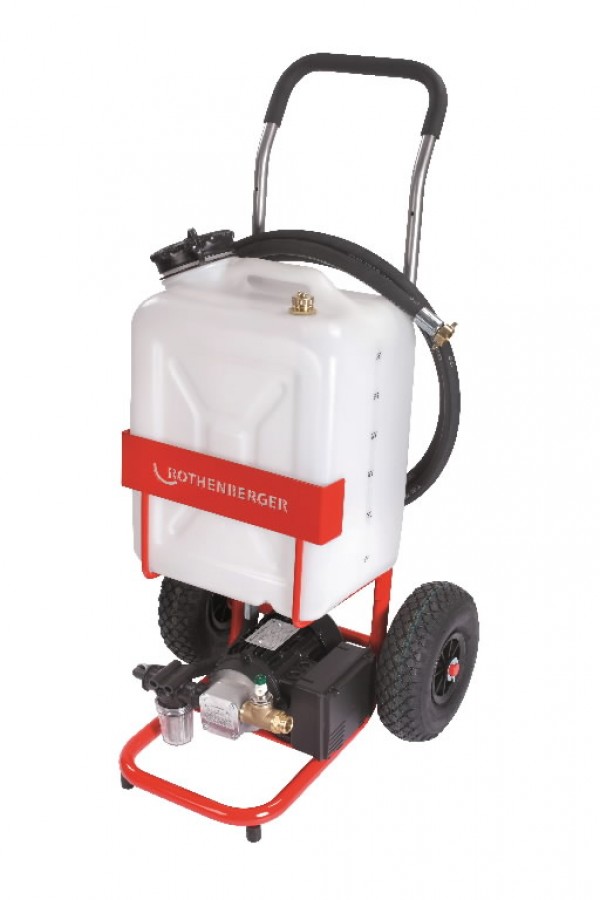

ROSOLAR saules sūknis ar centrbēdzes sūkni 5,9 – 5,9 bar, Rothenberger
Produkta kods:1500000135&ROT
Tehniskā specifikācijaElectric Filling Pump for Solar Systems
Electric filling pump designed for filling, flushing, and bleeding solar systems.
The high-performance pump enables fast filling and effective flushing of solar installations. Heat-resistant hoses (up to 100 °C) ensure safe filling and maintenance of solar systems.
The height-adjustable telescopic handle (76–110 cm) allows space-saving storage, easy transport, and comfortable handling in confined spaces. Thoughtful design enables easy filling of the canister through a large opening, while the shut-off valve at the bottom allows complete and convenient emptying of the container.
Optional: a robust and heat-resistant (up to 90 °C) centrifugal pump, capable of conveying small solid particles without difficulty.
Scope of Delivery
ROSOLAR centrifugal pump
2 × 3 m hoses with 3/4" connection

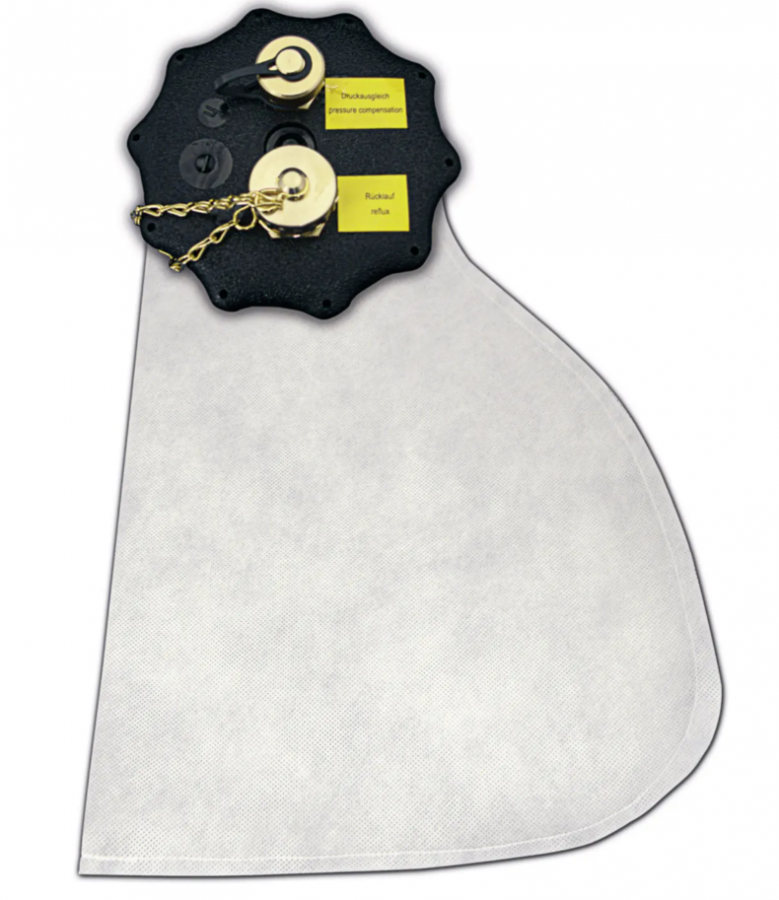

Non-woven filter bag
Return flow cover

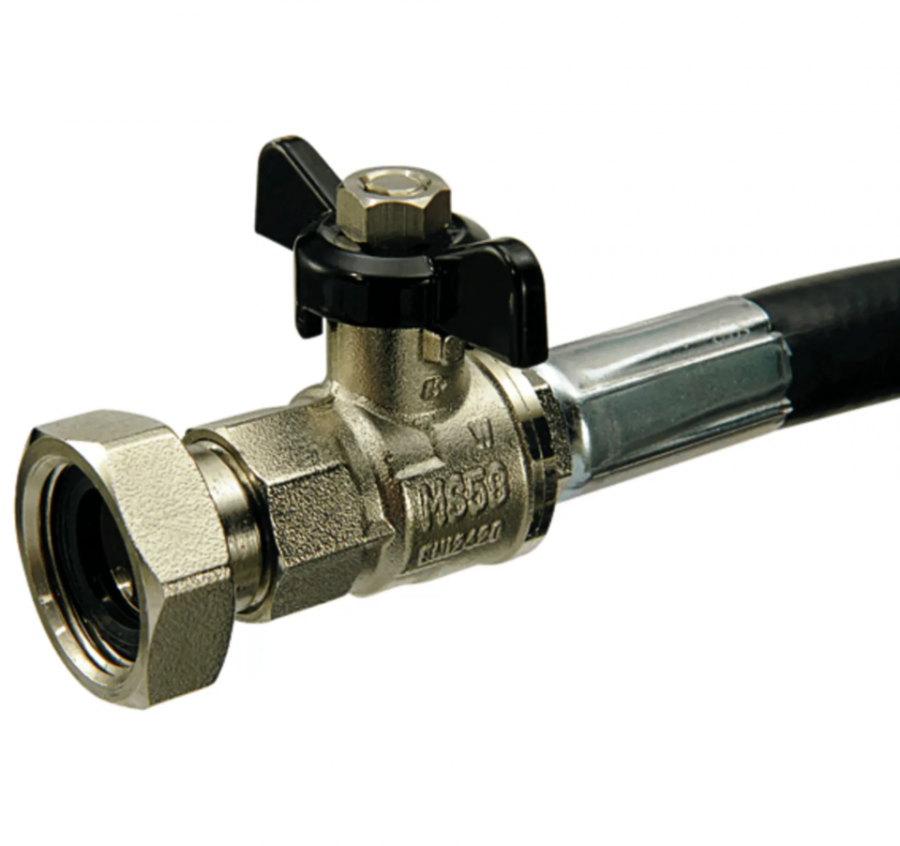

Ball valve
Operating instructions
Technical Data
Key specifications at a glance
Working pressure: 5.9 bar
Frequency: 50 Hz
Voltage: 220–240 V
Working diameter range: 10–32 mm
Working temperature: up to 90 °C
Output power: 750 W
Connection: 3/4"
Power plug type: Type F (CEE 7/4)
Pump capacity: 0–30 l/h
Tank volume: 30 l
