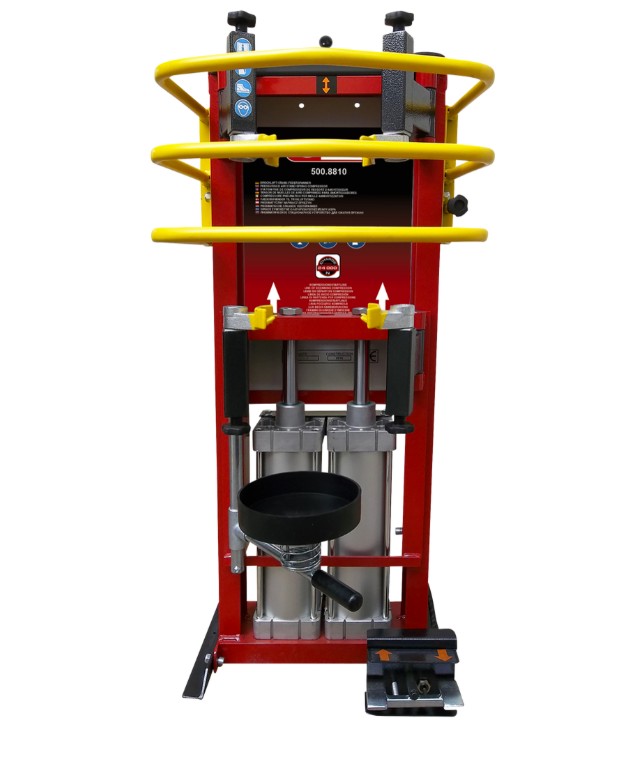

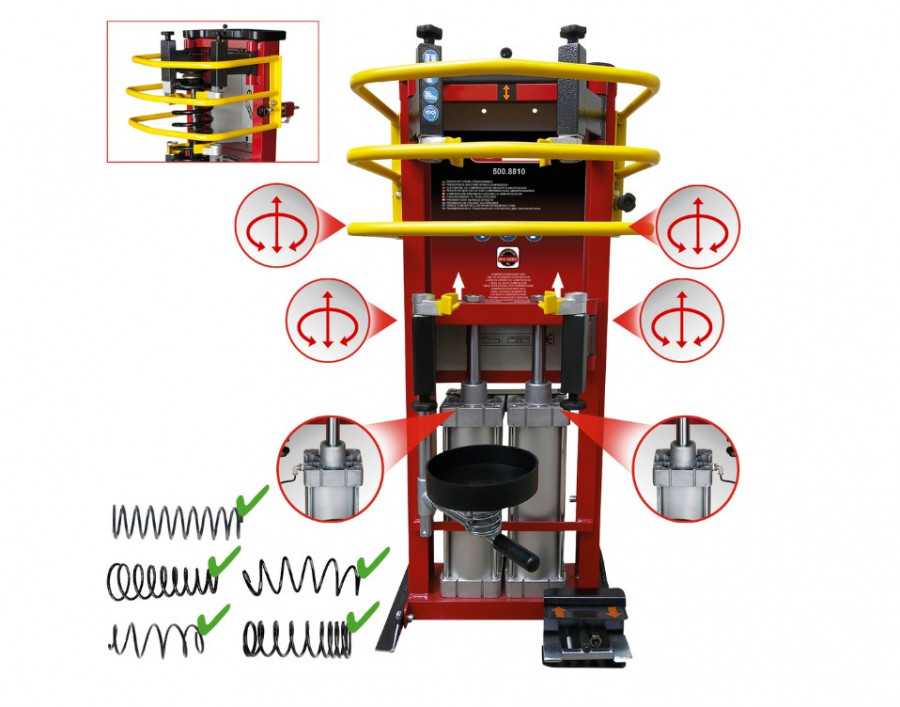

Pressurised air spring tensioner with double cylinder incl., KS Tools
Produkta kods:500.8810&KST
Tehniskā specifikācijaDescription
working pressure 1,200 kg by 5 bar, 2,400 kg by 10 bar
through double cylinder with up to 2,400 kg also suitable for strong springs (transporters, SUV, etc.)
ideal for tensioning spring feet
pressurised air support allows for extremely comfortable working
secure assembly and disassembly of the shock absorbers with McPherson spring feet system
suitable for 95% of all vehicles on the market
robust safety cage to prevent accidents
sturdy foot for optimal stability
secure and easy to use
special tool steel
Properties
Air consumption in l/min: 250
Compression force max (kg): 2400
Compression stroke (mm): 450.0
Connection thread: 1/4"
Height in mm: 1200.0
Material1: special tool steel
Operating pressure max (bar): 10
Packaging contents: 1
Packaging height, mm: 340
Packaging length, mm: 1320
Packaging width, mm: 300
Total length mm: 400.0
Weight [g]: 91000
Width in mm: 500.0
