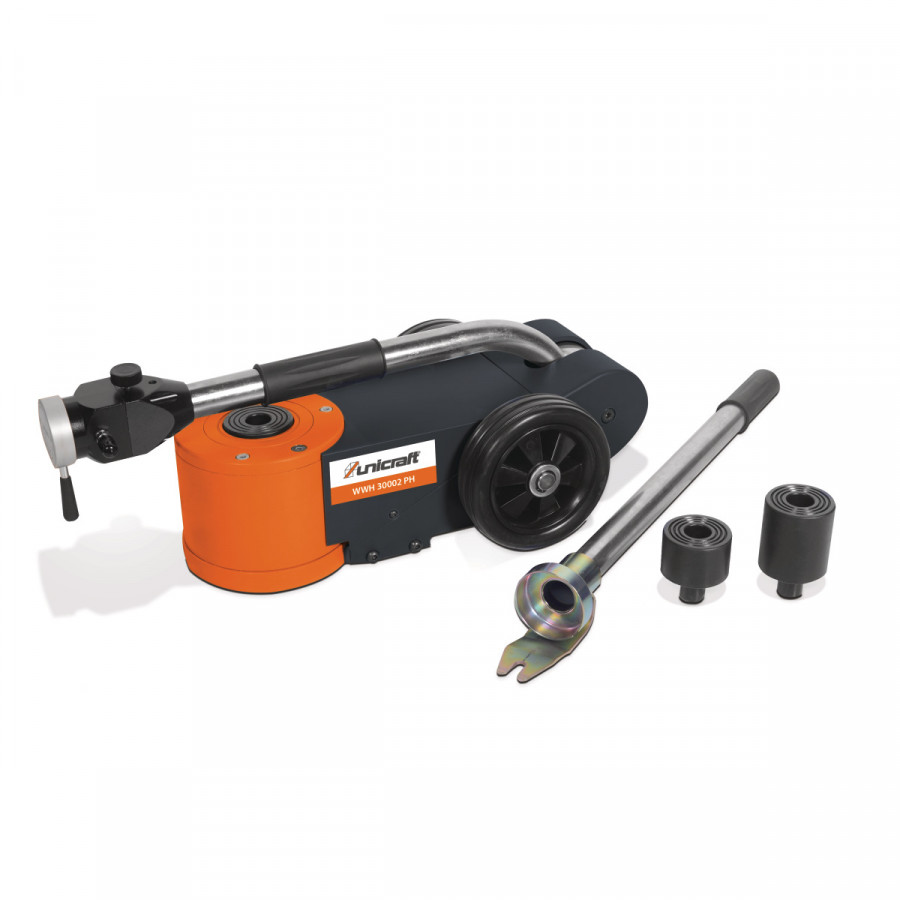

Pneumatic-hydraulic jack 30/15t WWH 30002 PH, Unicraft
Produkta kods:6201132&UC
Tehniskā specifikācijaControlled, safe lifting and lowering
For operation with compressed air from an external generator
Two-stage lifting system

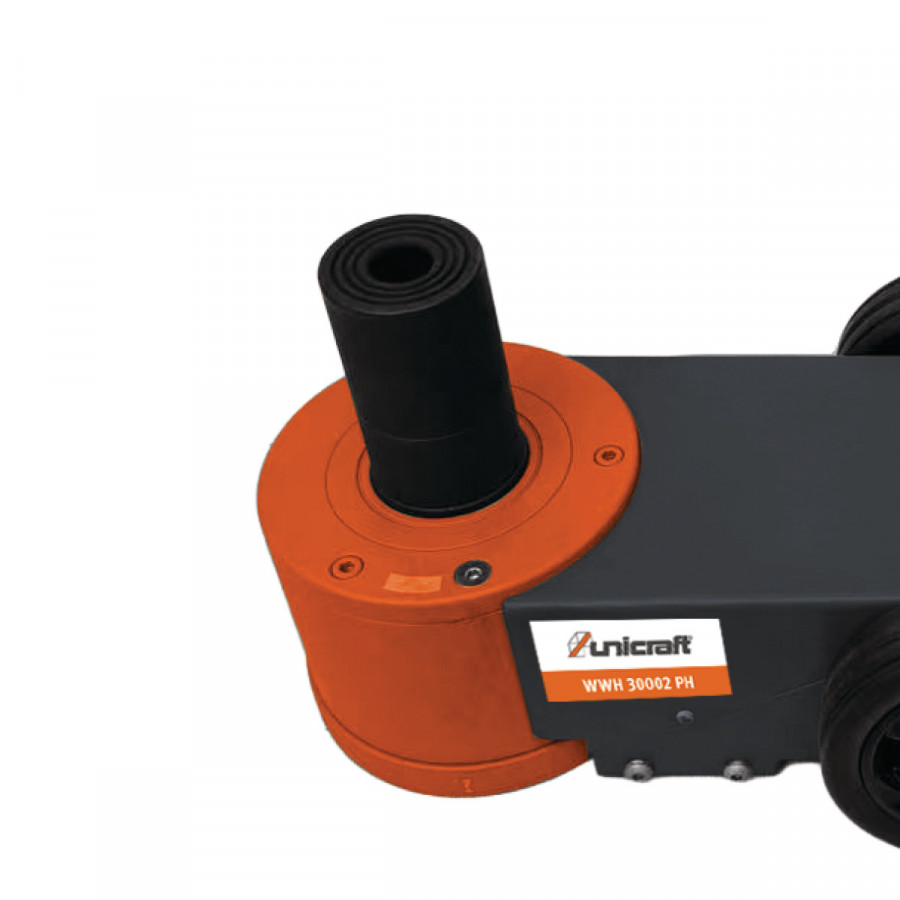

Hard chrome-plated pistons with smooth surface
Robust solid rubber wheels for easy maneuvering in the workshop

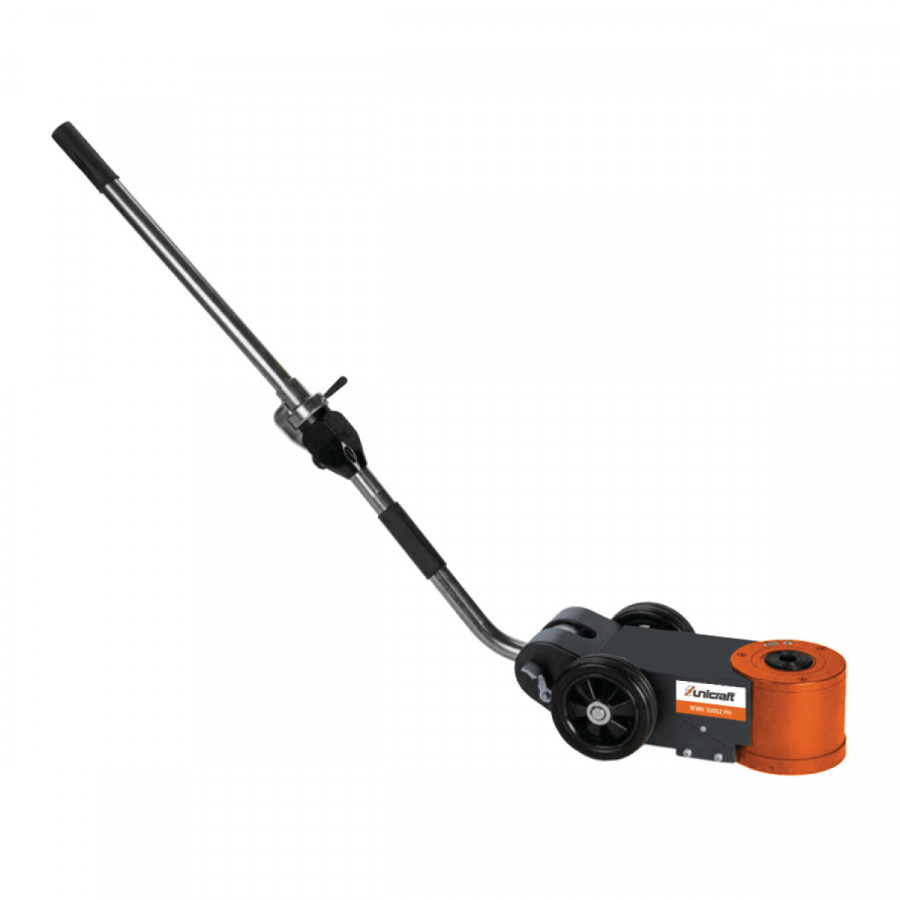

Extendable handle for lifting, carrying and maneuvering
Also suitable for on the road thanks to its low weight of just 32kg
Load capacity 30t
Load capacity is 30 or 15t depending on the final height

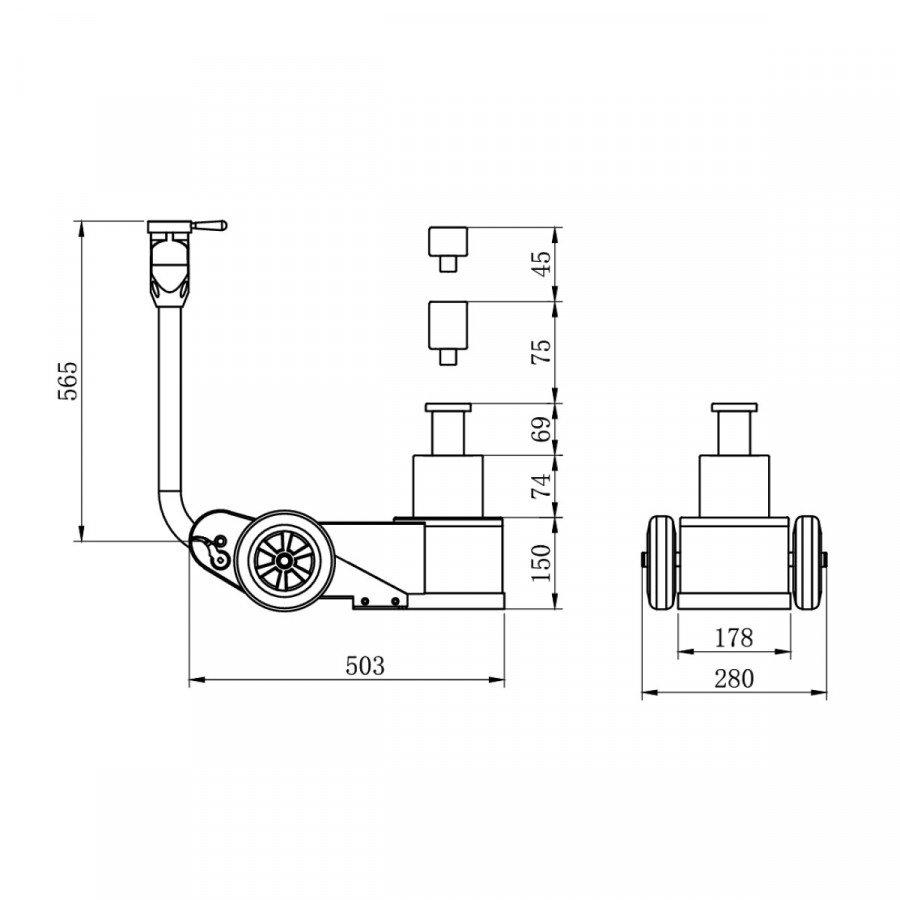

Lifting height 74+69mm
Height of top sections 45+75mm
Min. clearance 150mm
Operating pressure 9 – 12bar
Air consumption 61l/stroke
Dimensions and weights
Net weight approx.32.4kg
Delivery contents:

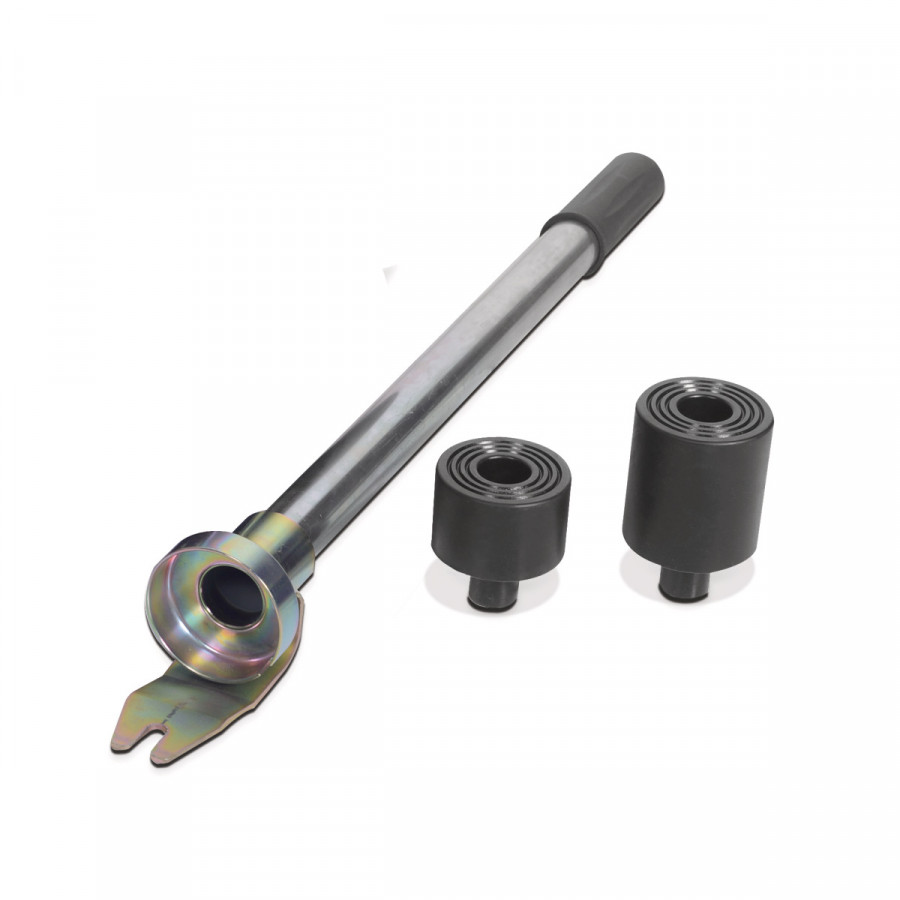

Lever extension
Extension piece 45 mm
Extension piece 75 mm
