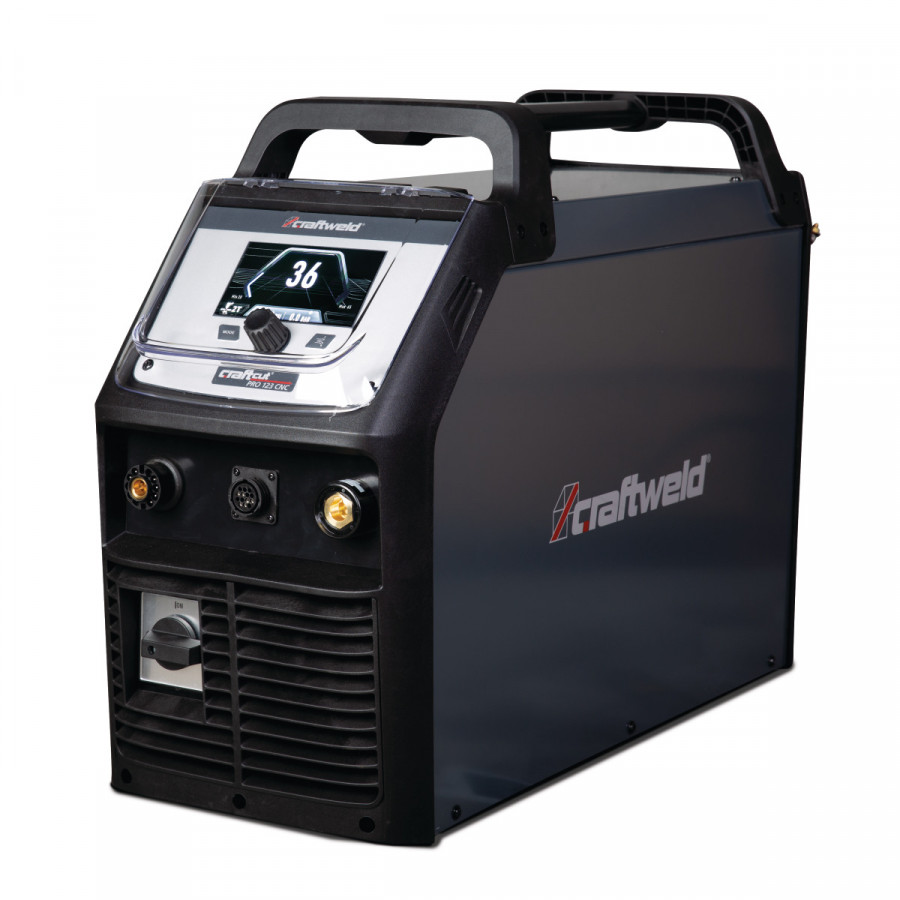

Plazmas griešanas iekārta Craftweld Craft-Cut Pro 123 CNC, Schweisskraft
Produkta kods:1365125&SCHWEIS
Tehniskā specifikācijaFor cutting of all metals - stainless steel, aluminum, mild steel, non-ferrous metals also with painted surface.
From thin sheets to heavy plates.
Pilot ARC-Controller: Only after ignition of the arc the set welding current is released.
With 2- and 4-stroke function.

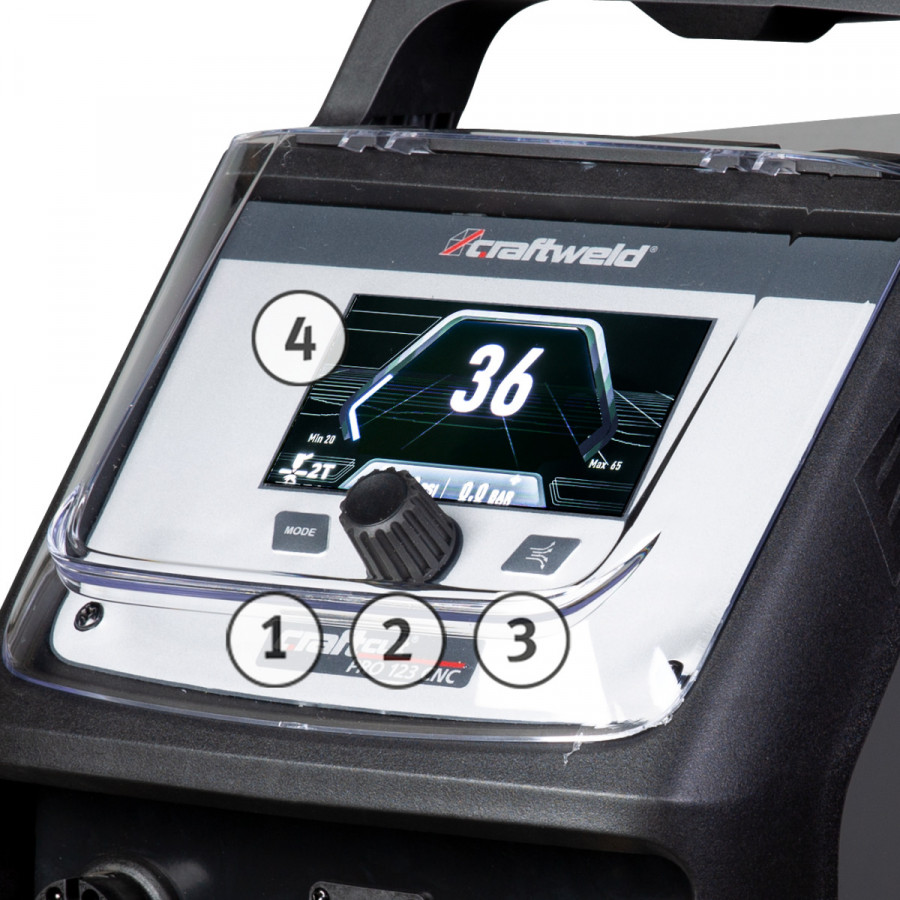

Precise setting and display of welding parameters via LC display.

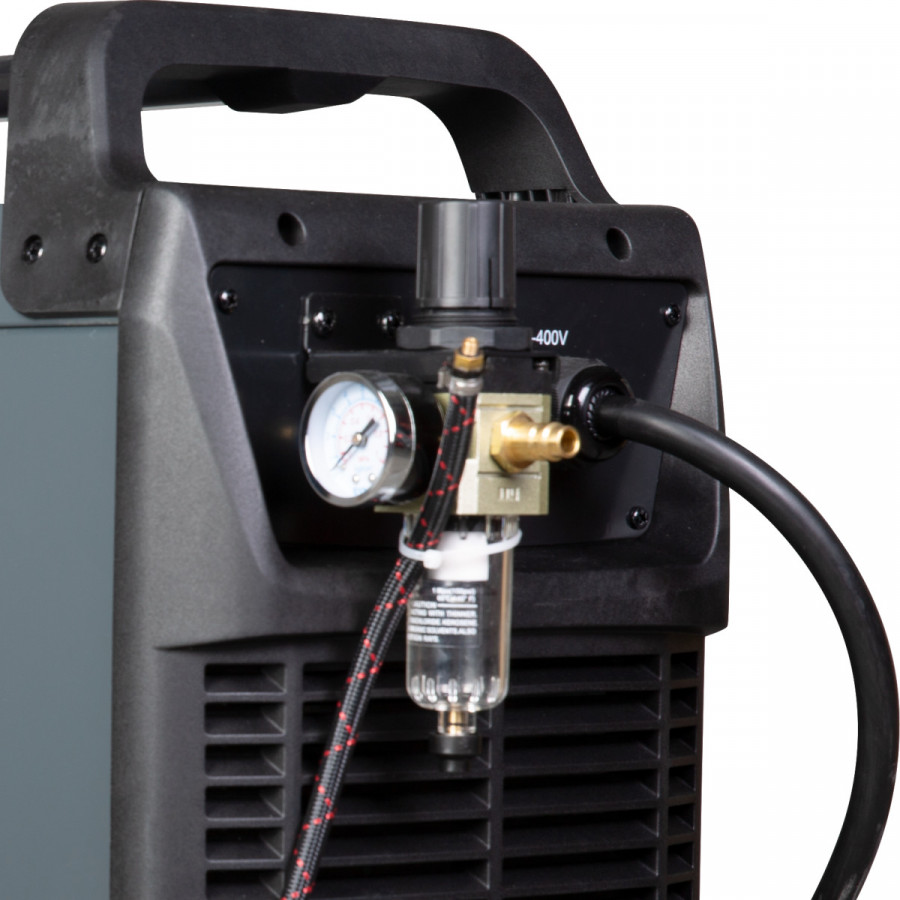

Integrated filter pressure regulator for setting the cutting pressure.
Technical description.
Maximum separating cutting power:
- steel ST37 or similar ~50mm;
- aluminium ~40mm;
- stainless steel ~50mm;
Maximum quality cutting:
- steel ST37 or similar ~40mm;
- aluminium ~35mm;
- stainless steel ~ 40mm;
Supply voltage 400V.
Current control range 20-120A.
Air consumption 200 l / min.
Required air pressure 5 bar.
The set includes:
Plasma torch BT CUT 125 CNC
Ground cable 4m, 12mm² with ground clamp 300 A.
From thin sheets to heavy plates.
Pilot ARC-Controller: Only after ignition of the arc the set welding current is released.
With 2- and 4-stroke function.
Precise setting and display of welding parameters via LC display.
Integrated filter pressure regulator for setting the cutting pressure.
Technical description.
Maximum separating cutting power:
- steel ST37 or similar ~50mm;
- aluminium ~40mm;
- stainless steel ~50mm;
Maximum quality cutting:
- steel ST37 or similar ~40mm;
- aluminium ~35mm;
- stainless steel ~ 40mm;
Supply voltage 400V.
Current control range 20-120A.
Air consumption 200 l / min.
Required air pressure 5 bar.
The set includes:
Plasma torch BT CUT 125 CNC
Ground cable 4m, 12mm² with ground clamp 300 A.
