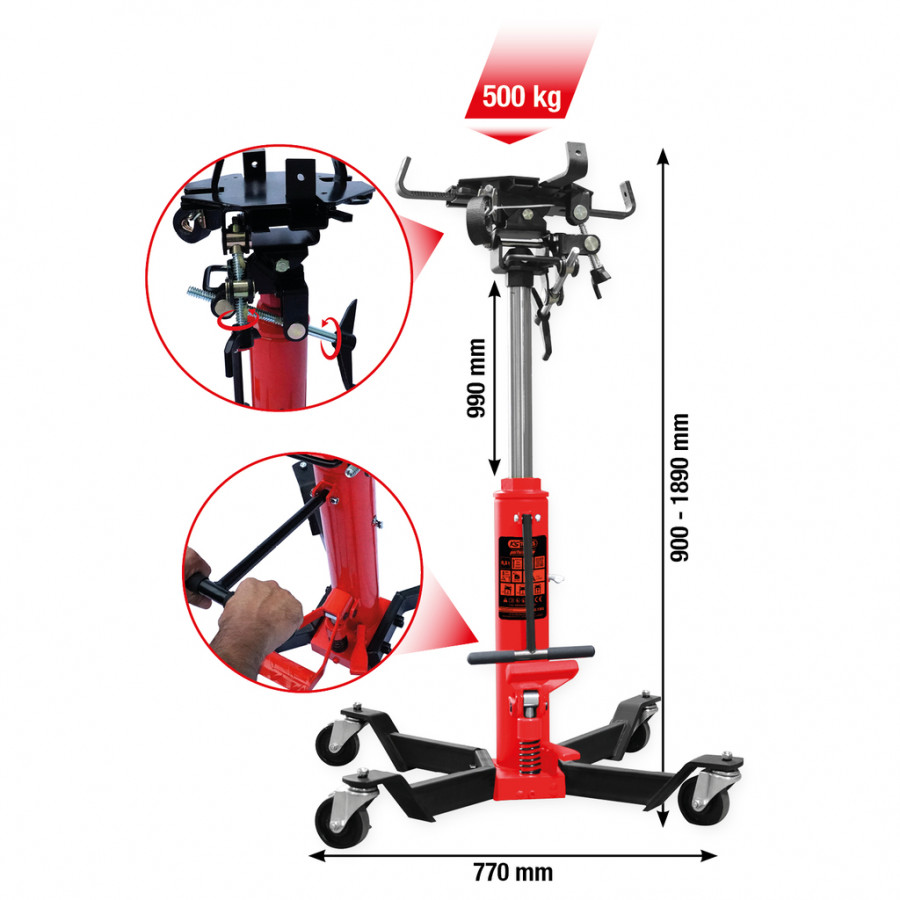

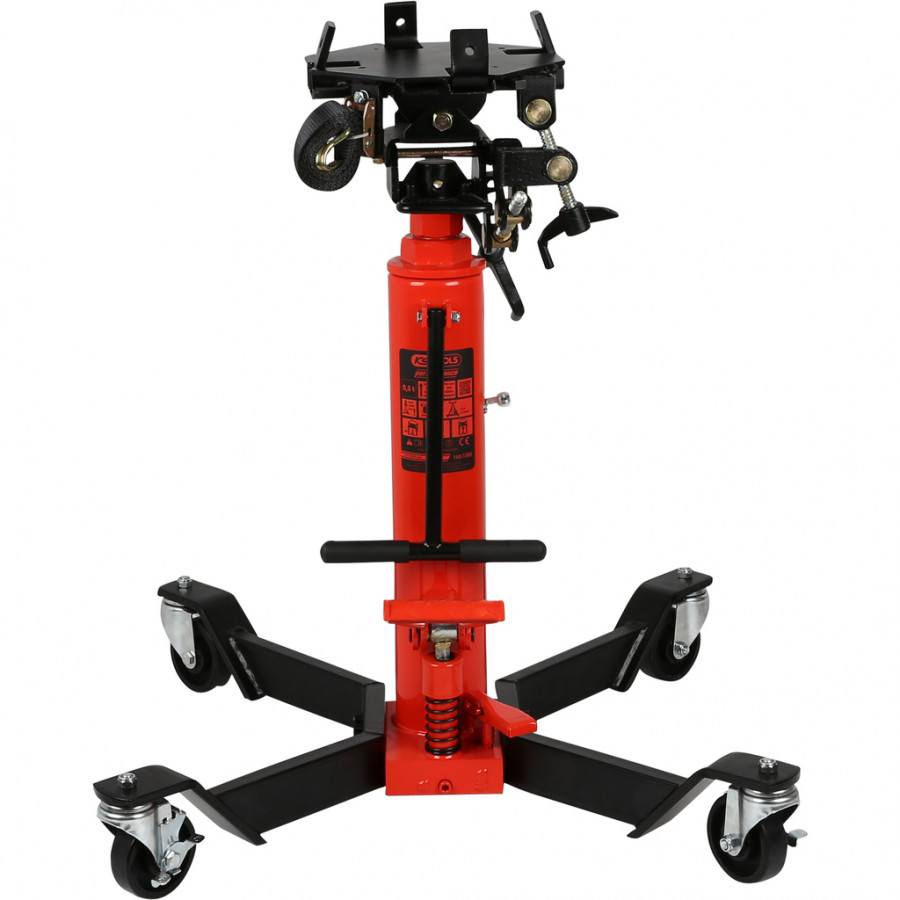

performance Hydraulic transmission jack with table, 500 kg, KS Tools
Produkta kods:160.1305&KST
Tehniskā specifikācijaDescription
Suitable for vehicle pits
Ideal for safe installation and removal
heavy and robust execution
uncomplicated lifting with hydraulic foot pump
continuous adjustment allows for precise positioning
especially wide working area
slow release of the load possible with the foot pump
Table with adjustable tilt / front 40°, rear 32°, side 8°
Including holding rails with holding chains for safe bracing
Adjustable chain spacing
extra-large covering for lifting
wide wheel spacing ensures more stability and manoeuvrability when loaded
with PU castors
Overload protection by safety pressure relief valve
Safety Bypass technology prevents oil leaks
ideally suited for daily workshop use
heavy steel construction
piston rod diameter 30 mm
Properties
Function attribute 1: hydraulic
Height in mm: 900
Load capacity in kg: 500
Packaging contents: 1
Packaging height, mm: 335
Packaging length, mm: 991
Packaging width, mm: 610
Stroke way mm: 990
Total length mm: 770
Weight [g]: 64500
Width in mm: 770
max. Capacity: 0,5
max. height mm: 1890
min. height mm: 900
