Tehniskā specifikācijaCapacity 2.5 t
- Load-bearing width 550 mm
- Fork width 160 mm
- Fork length 1150 mm
- Underclearance 85 mm
- Max. Fork height 195 mm
- Stroke per pump action 13 mm
- Turning radius 1281 mm
- Steering angle 205 °
- Castors (diameter x width) 180 x 50 mm
- Steering rollers material Polyurethane
- Fork wheels (diameter x width) 80 x 70 mm
- Fork roller material Polyurethane
- Dimensions (L x W x H) 1540 x 550 x 1210 mm
- Weight 65 kg
Comfortable to operate, resilient and maneuverable
Lifting, lowering and neutral position can be operated via one-hand lever
With a foot lowering lever as standard, which enables the loaded pallets to be lowered flexibly with the foot

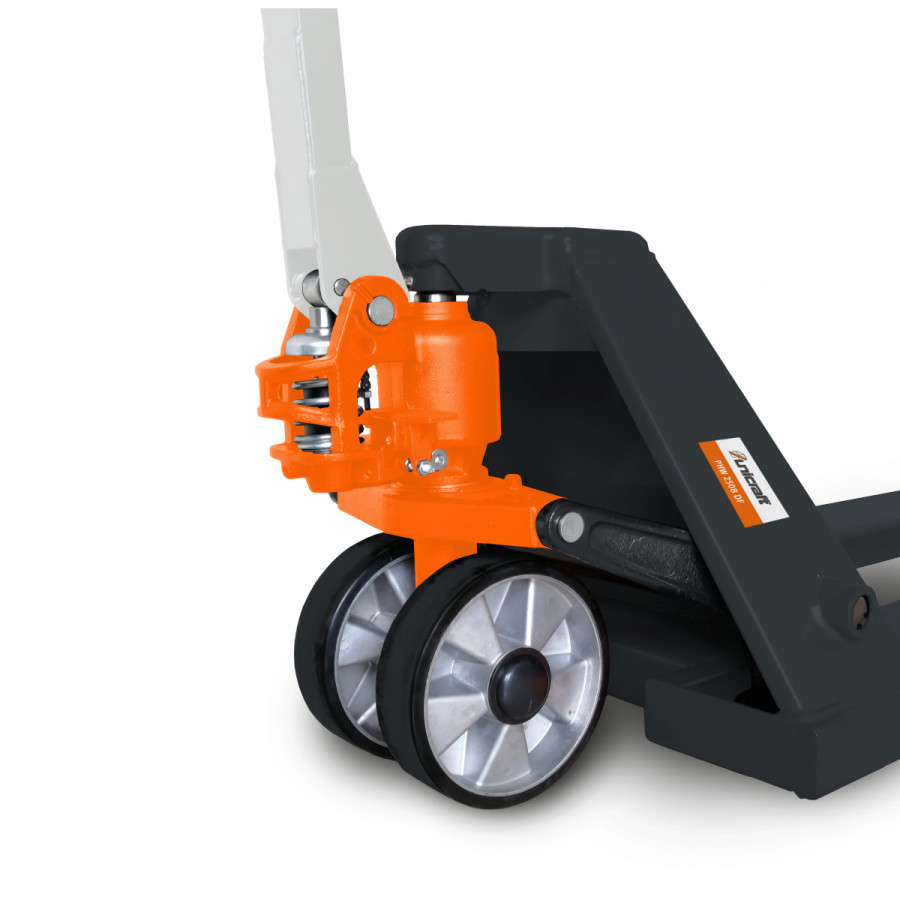

Smooth-running hydraulic pump with hard chrome-plated piston and pressure relief valve
Infinitely adjustable lowering speed via sensitive lowering valve

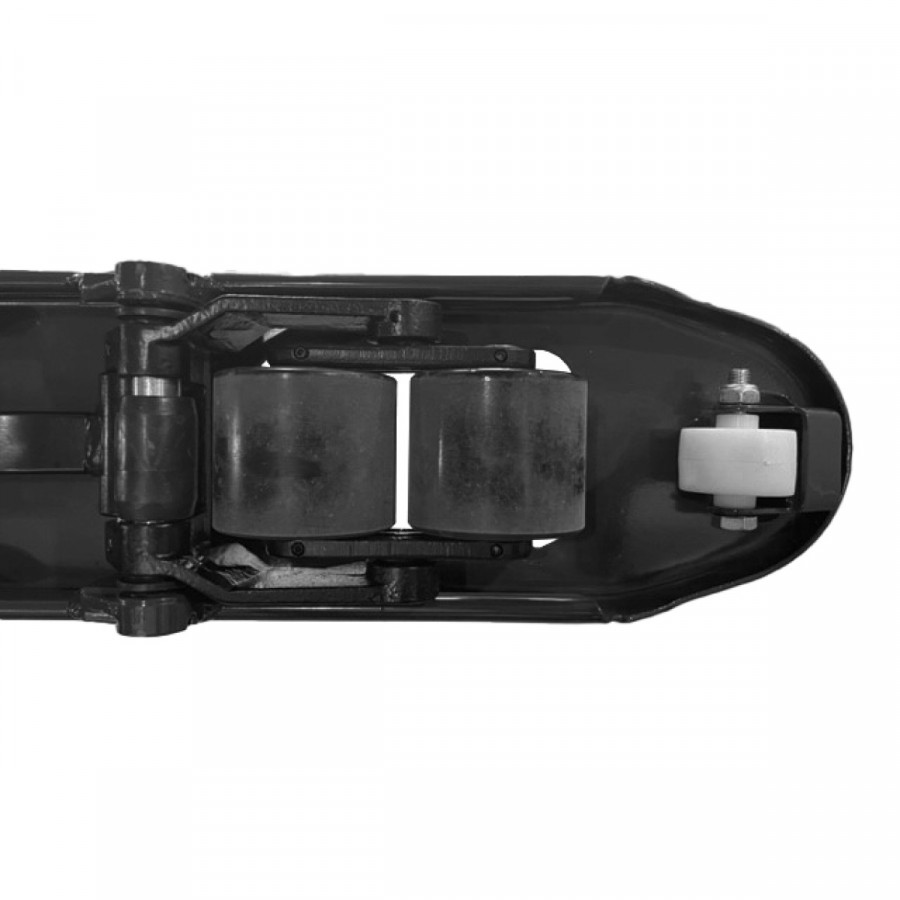

Easy movement of even heavy loads thanks to aluminum swivel castors with polyurethane treads and polyurethane tandem fork castors
Robust ball bearings in all wheels and castors

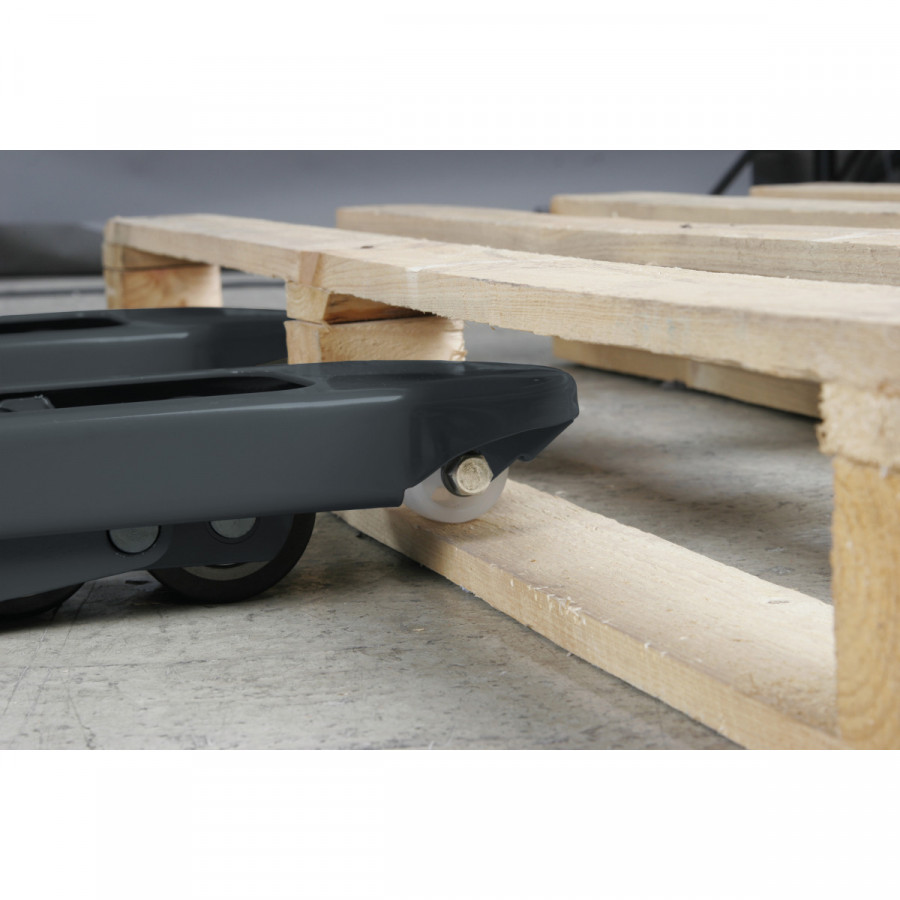

Entry and exit rollers for easy entry and exit of pallets
Steel frame and forks in a very stable and torsion-resistant shell construction
Ergonomically shaped drawbar
