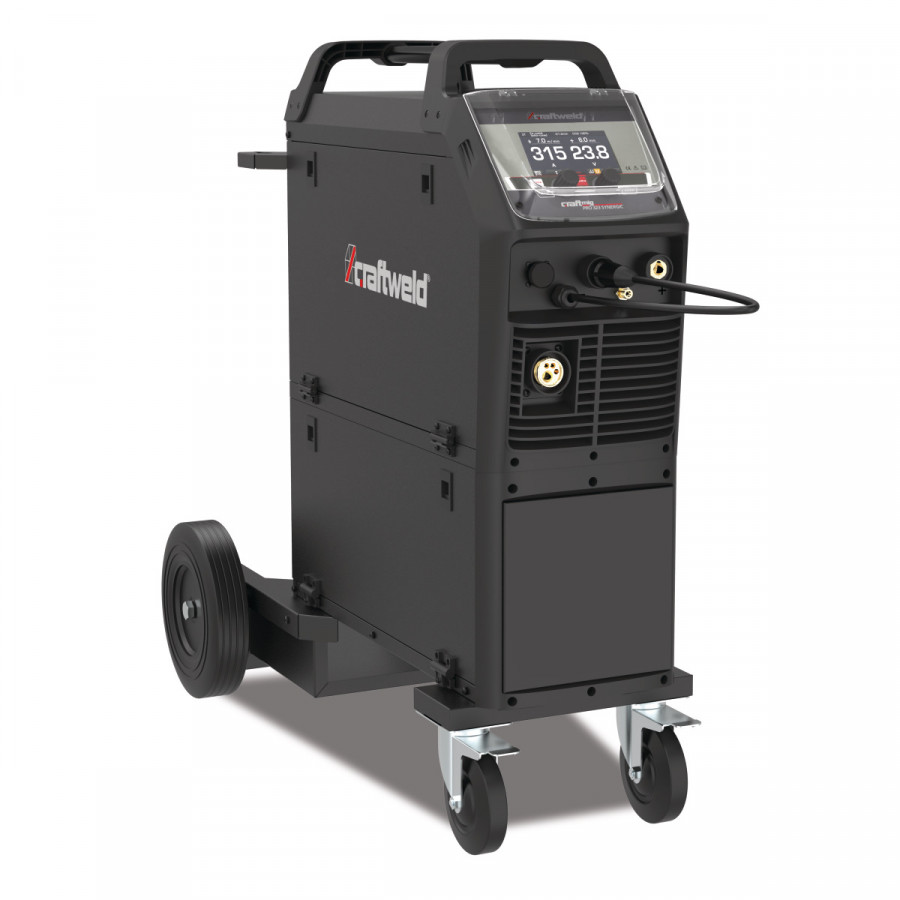

MIG/MAG metināšanas iekārta Craft-MIG Pro 233 Synergic, Schweisskraft
Produkta kods:1361155&SCHWEIS
Tehniskā specifikācijaDurable and reliable welding machine, combining the most common welding processes in one unit:
- MIG/MAG – wire welding in a shielding gas environment
- TIG DC (Lift) – tungsten electrode welding with direct current
- MMA – covered electrode welding
The machine is well suited for welding metal up to 7–8 mm thick.
Description:
Modern modular inverter technology ensures maximum reliability and high efficiency.
Synergic curves for steel, stainless steel, and aluminum allow high-quality welding results in just 3 simple steps.
The LCD display enables easy and precise adjustment of welding parameters.
Technical specifications:
Adjustment range:
- MIG/MAG: 30–315 A
- TIG DC: 10–300 A
- MMA (electrode): 10–250 A
Duty cycle (40 °C) 60% – 260 A; 100% – 200 A
Power supply 400 V, 50/60 Hz
Wire feed:
- Steel: 0.6–1.2 mm
- Stainless steel: 0.8–1.2 mm
- Aluminum: 1.0–1.2 mm
- CuSi: 1.0 mm
- Flux-cored wire: 0.8–1.2 mm

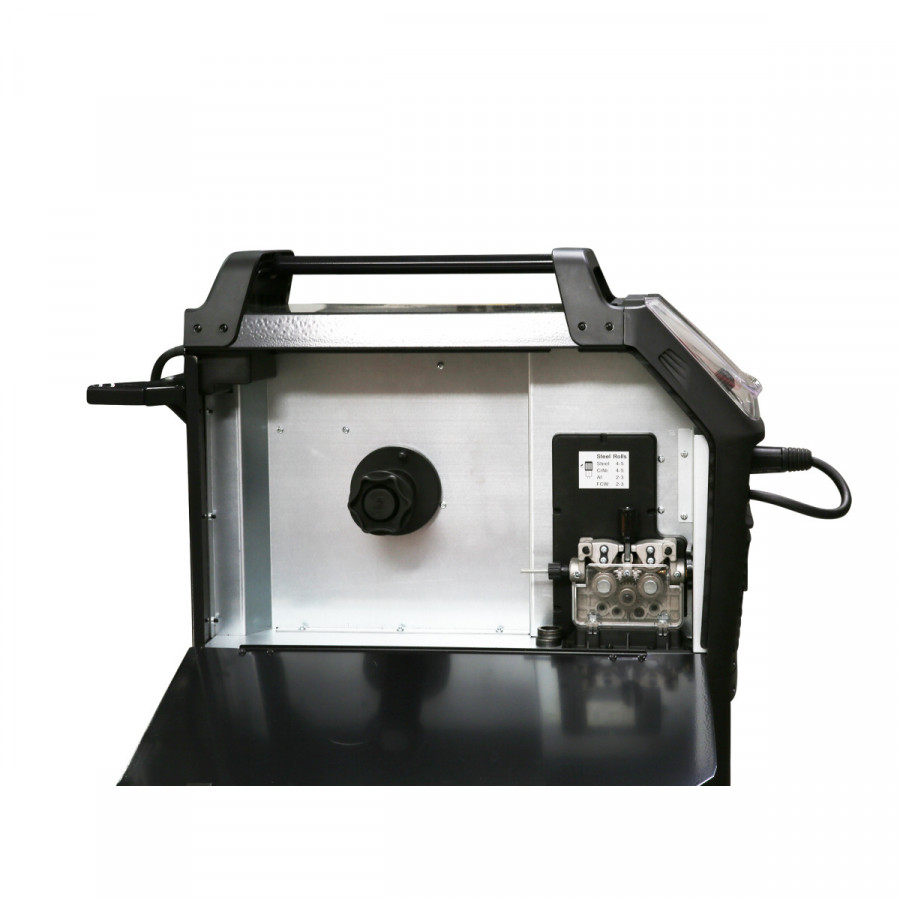

Wire feed mechanism: 4-roll drive
Wire feed speed: 1.5–24 m/min
Note: The machine is supplied without accessories.
MIG torch is not included.
Ground cable is not included.
