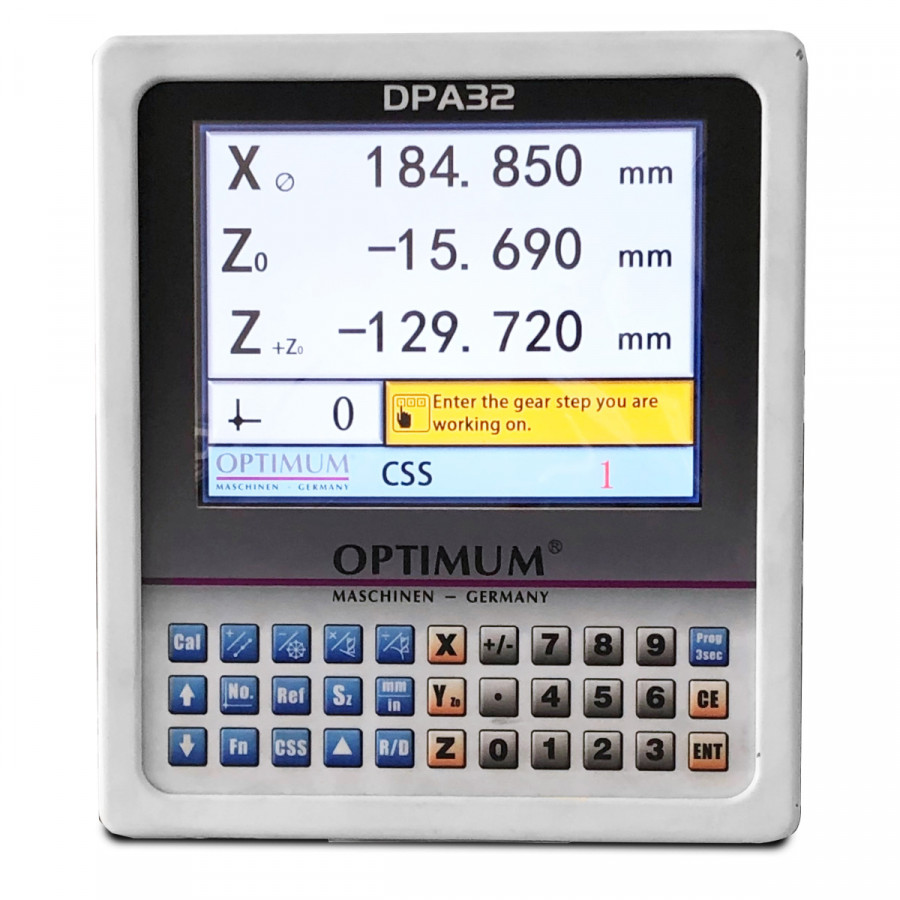

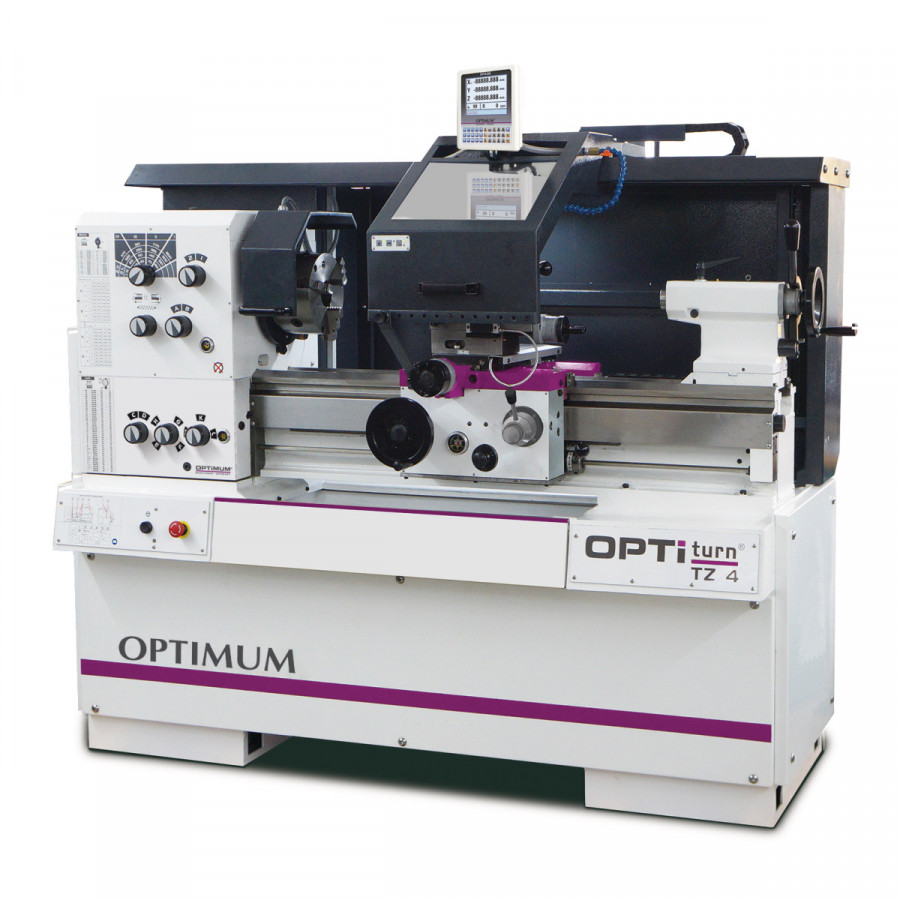

Metāla virpa OPTIturn TZ 4 DPA32, Optimum
Produkta kods:3432242&OPTIMUM
Tehniskā specifikācijaCenter height 200mm
Distance between center 800mm
Swing diameter above machine bed 400mm
Swing diameter above planing slide 245mm
Bed width 260mm
Number of gears 16
Speed range 45 – 1800min¯¹
Drive motor output 3 / 4,5kW
Supply voltage 400V
Mains frequency 50Hz
Total rated value 6kW
Cooling lubricant system coolant pump output 0.125kW
Spindle chuck DIN ISO 702-1 No. 5 Form A2
Spindle bore 52mm
Chuck passage diameter 52mm
Spindle cone MT 6
Tailstock chuck MK 3
Tailstock quill stroke 110mm
Tailstock quill diameter 50mm
Metric pitch 0,2 – 14mm/rev
Number of metric pitches 26
Imperial pitch 80 – 1Gg/1"
Number of imperial pitches 42
Diametrical pitch 3 – 200Gg/π
Number of diametrical pitches 33
Modular thread pitch 0,1 – 7mm/rev
Number of modular thread pitches 44
Travel upper slide 112mm
Travel cross slide 212mm
Travel carriage saddle 800mm
Longitudinal feed range 0,0263 – 1,8416mm/rev
Number of longitudinal feeds 48
Flat feed range 0,0133 – 0,9321mm/rev
Number of flat feeds 48
Delivery Contents:
Fixed bezel passage Ø 10 - 130 mm
Running bezel passage Ø 10 - 100 mm
Reduction sleeve MK3 and MK6
Fixed centering point MK3
Quick change steel holder 5-B
Steel holder 25 x 120 type D for square chisels
Change wheels set for metric thread
Initial machine filling with quality oil
operating tool
Integrated cooling device
