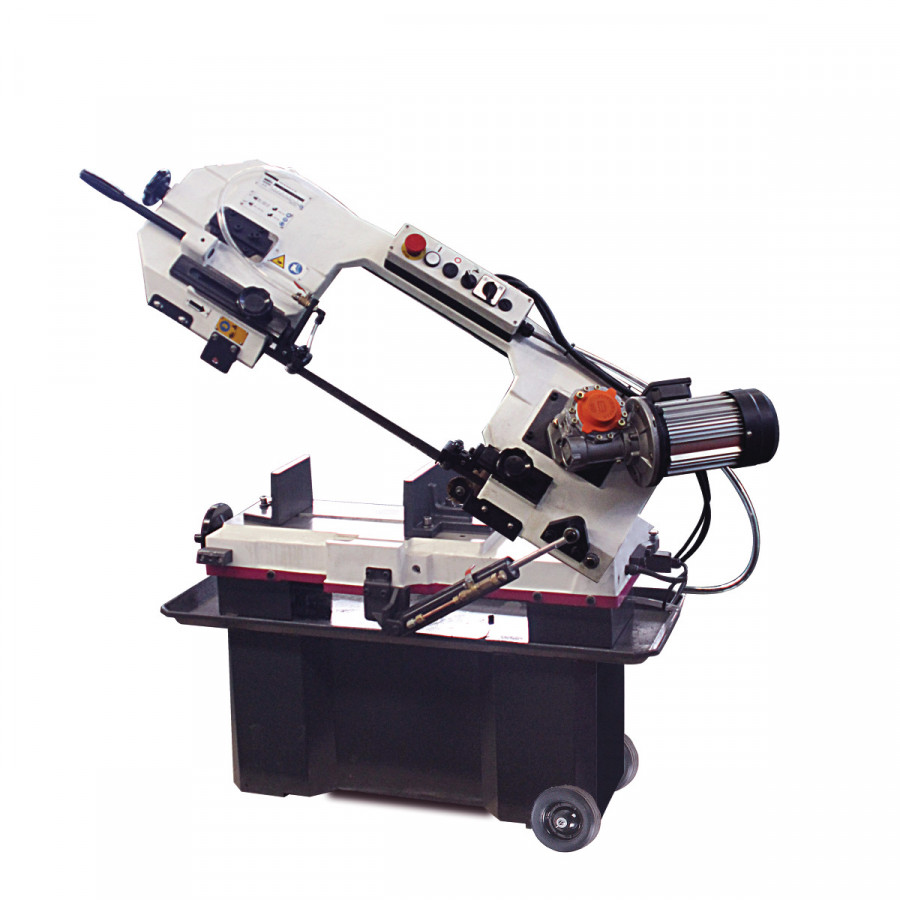

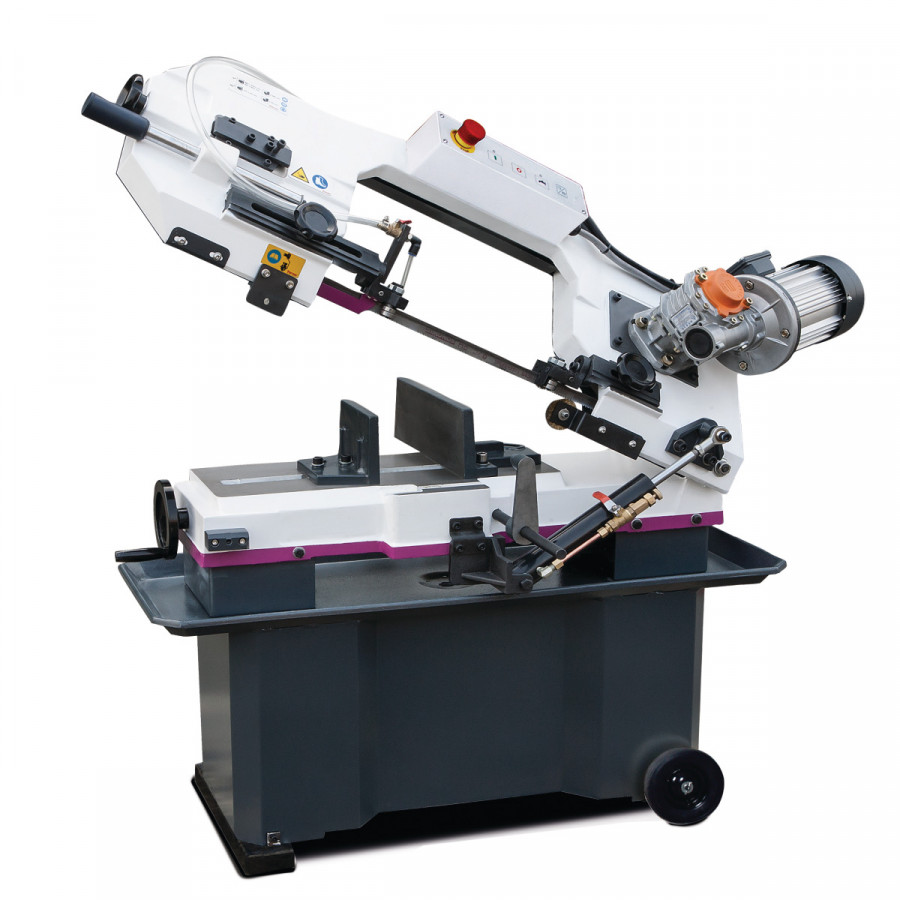

Metāla lentzāģis OPTIsaw SD 200G, Optimum
Produkta kods:3300200&OPTIMUM
Tehniskā specifikācijaDrive motor output 0.55 / 0.75kW
Supply voltage 400V
Mains frequency 50Hz
Engine power coolant pump 0,1kW
Saw band speed(s) 44 / 88m/min
Saw band length 2360mm
Saw band width 19mm
Saw band thickness 0,9mm
Cutting angle from to 0 45°
Feed infinitely variable
Lifting the saw bow Manual
Cutting range 0° round (solid material) 180mm
Cutting range 0° square (solid material) 180mm
Cutting range 0° rectangular upright (solid material) 180 x 240 / 50 x 300mm
Cutting range +45° round (full material) 110mm
Cutting range +45° square (solid material) 150mm
Cutting range +45° rectangular upright (solid material) 110 x 170mm
Explanation Cutting range Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Delivery Contents:
Material stop
Bi-metal saw band
Machine base
Supply voltage 400V
Mains frequency 50Hz
Engine power coolant pump 0,1kW
Saw band speed(s) 44 / 88m/min
Saw band length 2360mm
Saw band width 19mm
Saw band thickness 0,9mm
Cutting angle from to 0 45°
Feed infinitely variable
Lifting the saw bow Manual
Cutting range 0° round (solid material) 180mm
Cutting range 0° square (solid material) 180mm
Cutting range 0° rectangular upright (solid material) 180 x 240 / 50 x 300mm
Cutting range +45° round (full material) 110mm
Cutting range +45° square (solid material) 150mm
Cutting range +45° rectangular upright (solid material) 110 x 170mm
Explanation Cutting range Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Delivery Contents:
Material stop
Bi-metal saw band
Machine base
