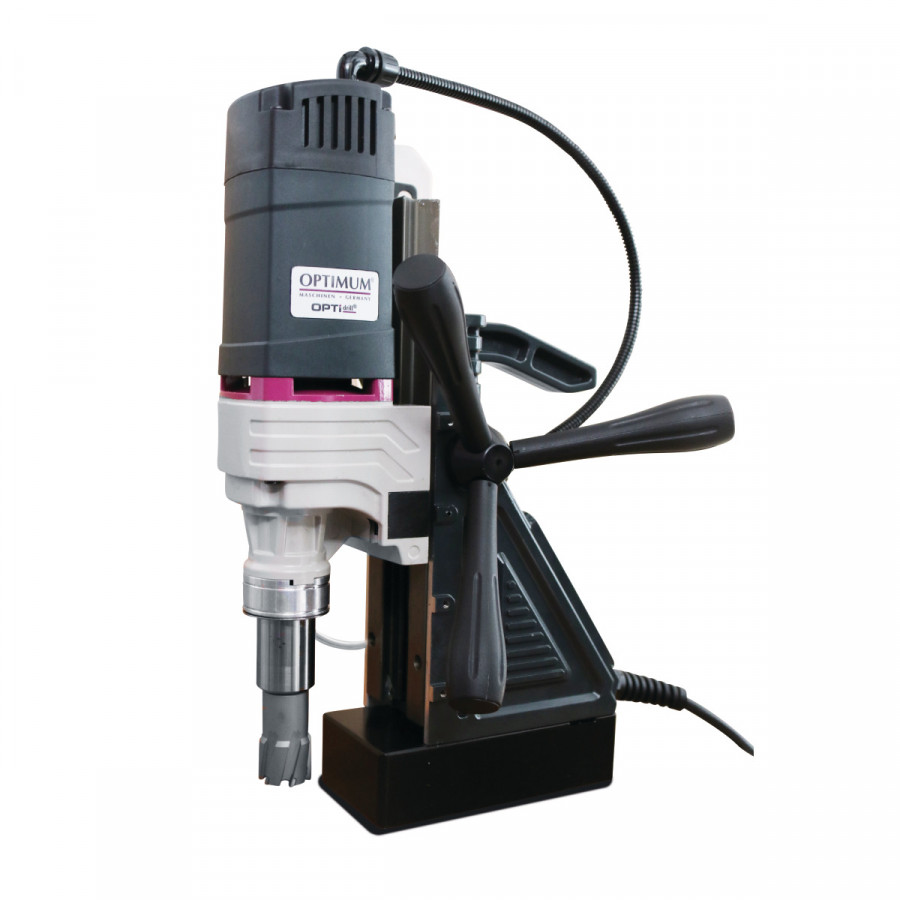

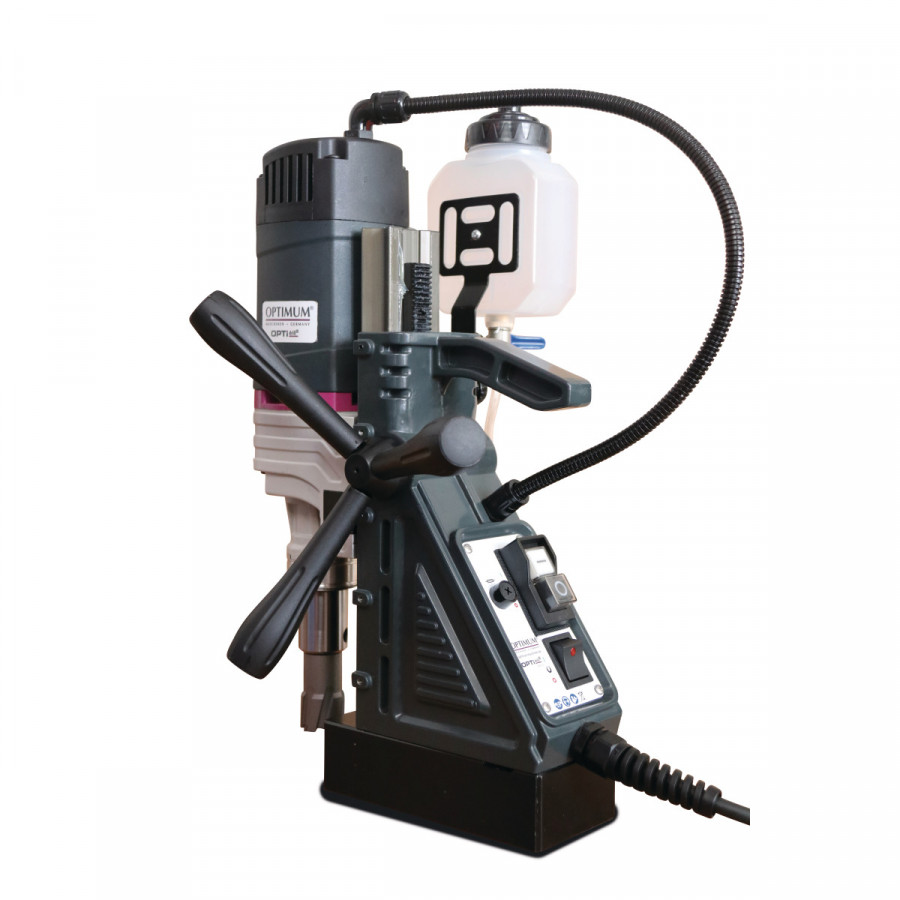

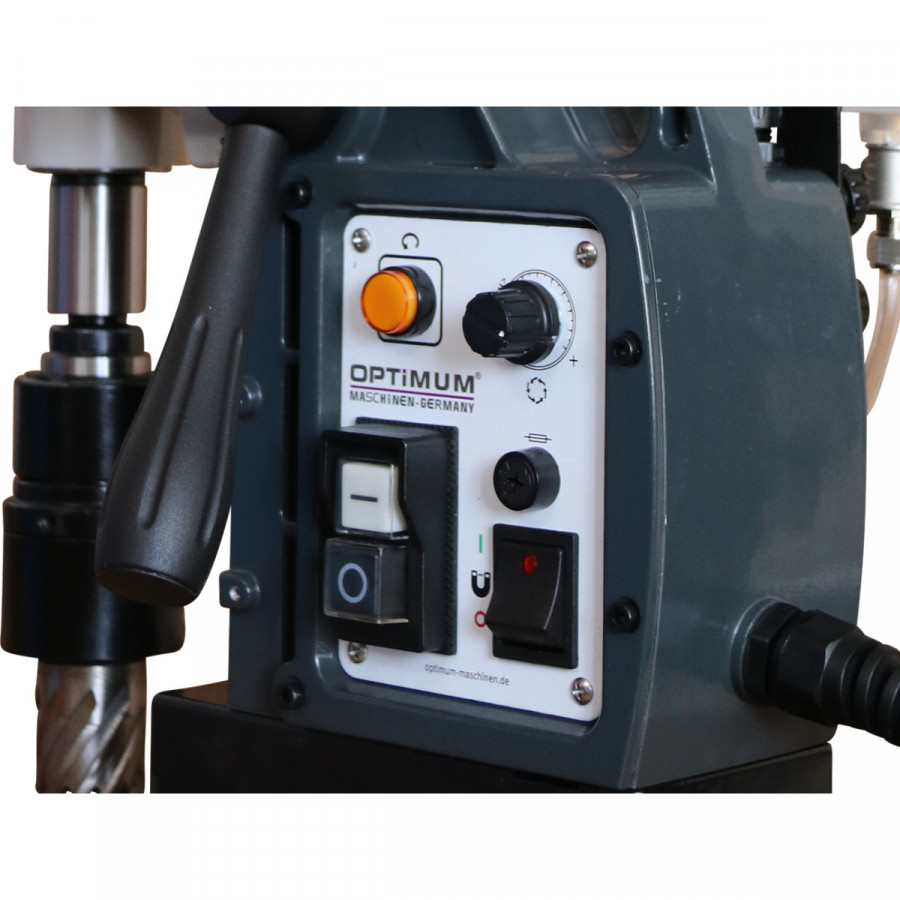

Magnētiskais urbis OPTIdrill DM 50, Optimum
Produkta kods:3071051&OPTIMUM
Tehniskā specifikācijaCore drills Ø max. with manual feed 16mm
Max. drilling depth core drilling with manual feed 50mm
Drill adapter Weldon 3/4"(19mm)
Drive motor output 1.65kW
Supply voltage 230V
Mains frequency 50Hz
Idling speed(s) (CW run) 780min¯¹
Magnetic holding force 16,5kN
Magnet base length 166mm
Magnet base width 80mm
Net weight approx. 16.5kg
Stable drill guide due to long and low-mounted quill holder
The devices are ideal for the construction site as they are earthed and double insulated
Internal self-lubrication function ensures a longer service life of the gearbox
Soft start protects the motor and extends the service life
Powerful motor with high torque and low maintenance
High-quality construction
Conversion from core drilling to full drilling in a few simple steps
Automatic return to the starting position
Protection class IP42
Max. drilling depth core drilling with manual feed 50mm
Drill adapter Weldon 3/4"(19mm)
Drive motor output 1.65kW
Supply voltage 230V
Mains frequency 50Hz
Idling speed(s) (CW run) 780min¯¹
Magnetic holding force 16,5kN
Magnet base length 166mm
Magnet base width 80mm
Net weight approx. 16.5kg
Stable drill guide due to long and low-mounted quill holder
The devices are ideal for the construction site as they are earthed and double insulated
Internal self-lubrication function ensures a longer service life of the gearbox
Soft start protects the motor and extends the service life
Powerful motor with high torque and low maintenance
High-quality construction
Conversion from core drilling to full drilling in a few simple steps
Automatic return to the starting position
Protection class IP42
