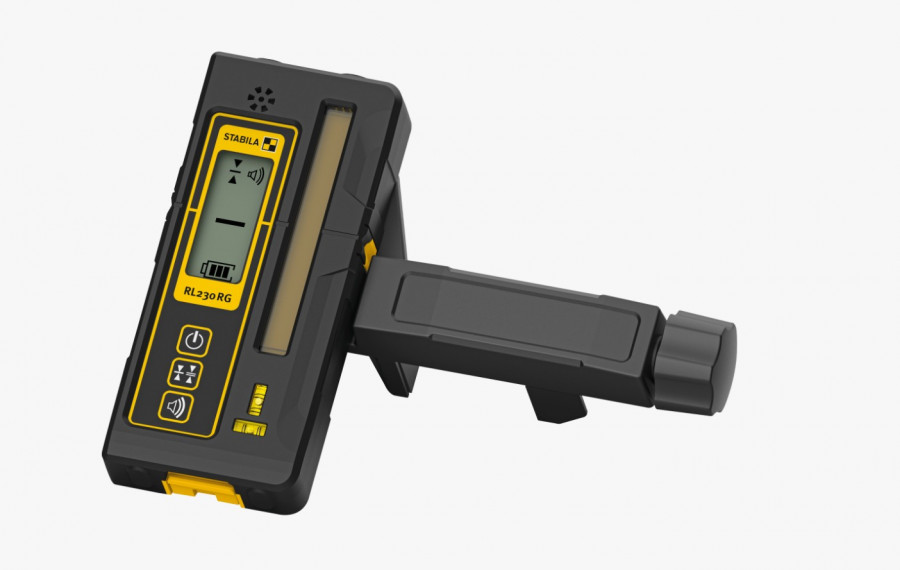

Tehniskā specifikācijaWork with precision over large distances: the RL 230 RG receiver is the perfect accessory for green and red line lasers. It accurately determines the position of a pulse-modulated laser line relative to the reference level, even over large distances and when the line is no longer visible. With displays on the front and back, an illuminated digital display, acoustic guidance and two sensitivity levels, it is flexible enough to handle any measuring task. Waterproof and dustproof according to IP66 protection rating, the receiver can be mounted in various ways and is designed for professional use on construction sites.
• High-performance receiver for pulse-modulated laser lines (green/red) to enlarge the working area.
• Illuminated digital displays on the front and back.
• Acoustic and visual guidance.
• Integrated magnet system on the upper edge of the housing.
• Waterproof and dustproof (IP66).
Laser receiver for accurately determining the beam position of pulse-modulated line lasers with green or red laser diodes – even over large distances or in bright sunlight.

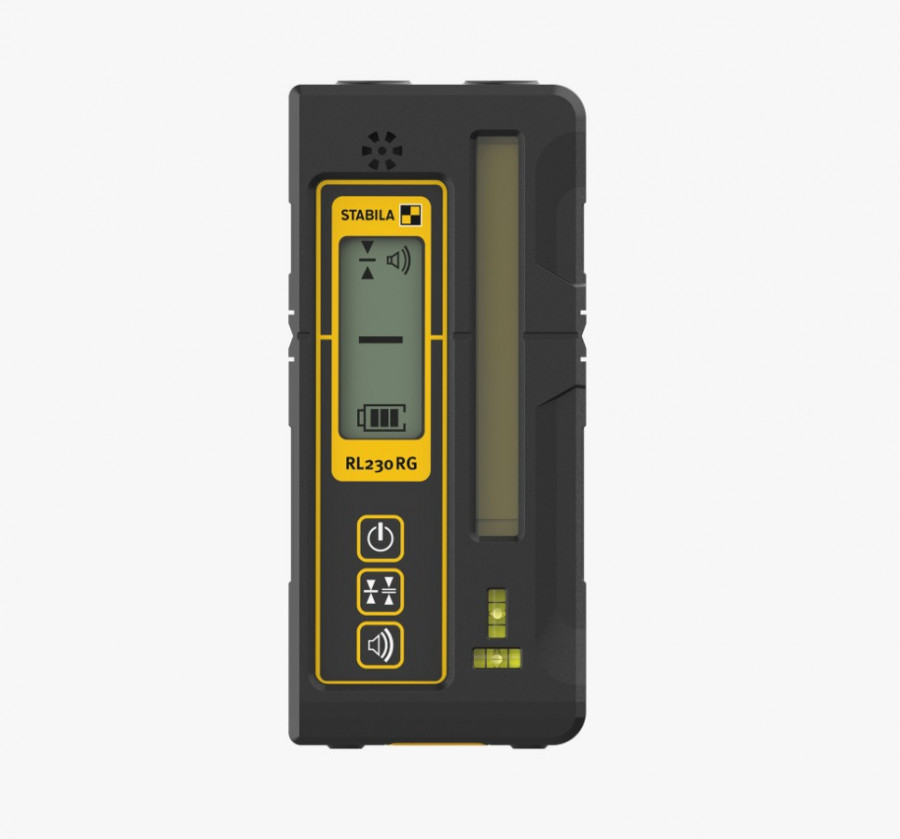

• Digital displays on the front and back for fast work – illuminated at the touch of a button.
• Visual display: arrow symbols on the display indicate the position of the receiver relative to the laser’s reference level.
• Acoustic guidance can be activated, with beeping tones in adjustable volume (loud: 105 dB, quiet: 85 dB).
• Two sensitivity levels can be set to suit the task – “fine” with a sensitivity of ±1 mm or “approximate” with a sensitivity of ±3 mm for larger measuring distances.
• Waterproof and dustproof according to protection rating IP66.
• Multiple mounting options – holder for attaching to levelling rods and an integrated magnet system.
• Battery status display.
• Height of receiving area: 90 mm.
• Battery life: 45 hours.
• High-performance receiver for pulse-modulated laser lines (green/red) to enlarge the working area.
• Illuminated digital displays on the front and back.
• Acoustic and visual guidance.
• Integrated magnet system on the upper edge of the housing.
• Waterproof and dustproof (IP66).
Laser receiver for accurately determining the beam position of pulse-modulated line lasers with green or red laser diodes – even over large distances or in bright sunlight.
• Digital displays on the front and back for fast work – illuminated at the touch of a button.
• Visual display: arrow symbols on the display indicate the position of the receiver relative to the laser’s reference level.
• Acoustic guidance can be activated, with beeping tones in adjustable volume (loud: 105 dB, quiet: 85 dB).
• Two sensitivity levels can be set to suit the task – “fine” with a sensitivity of ±1 mm or “approximate” with a sensitivity of ±3 mm for larger measuring distances.
• Waterproof and dustproof according to protection rating IP66.
• Multiple mounting options – holder for attaching to levelling rods and an integrated magnet system.
• Battery status display.
• Height of receiving area: 90 mm.
• Battery life: 45 hours.
