Tehniskā specifikācijaMax. cutting height at 90° 52mm

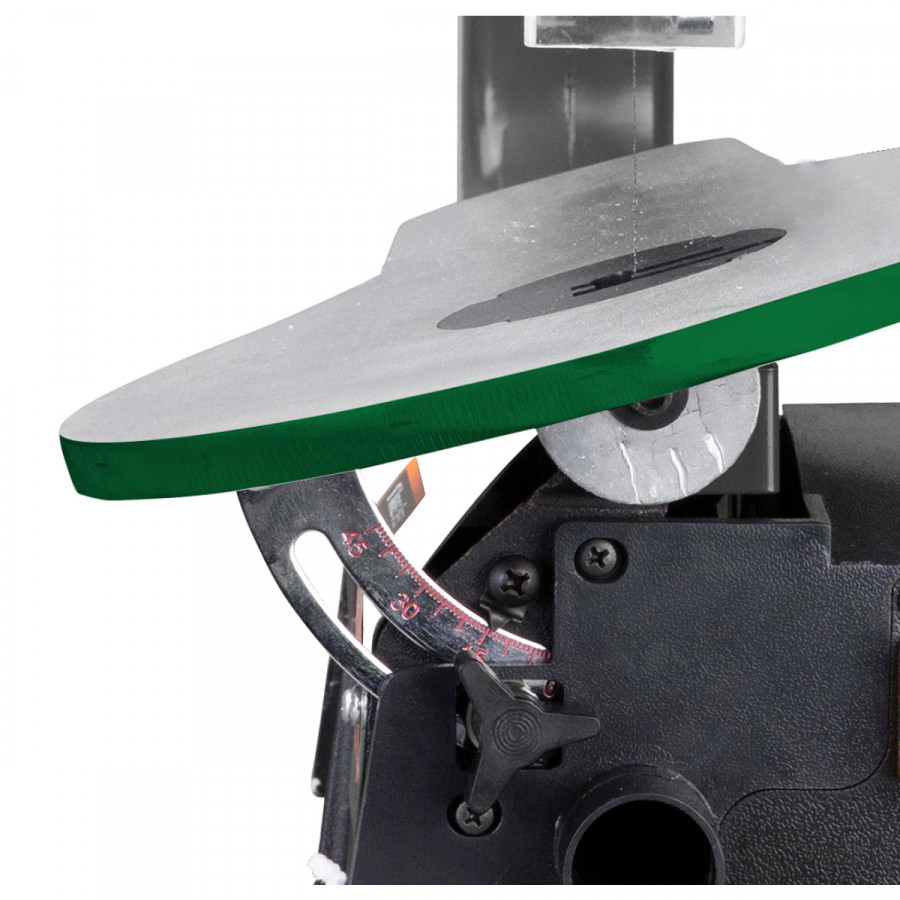

Max. cutting height at +45° 20mm
Stroke speed 550 – 1600min¯¹
Table length 414mm
Table width 254mm
Saw blade length 133mm
Extension 405mm
Extraction duct outside nominal width 35mm
Length (product) approx. 630mm
Width/depth (product) approx. 290mm
Height (product) approx. 380mm
Net weight approx. 12kg
Supply voltage 230V
Absorbed power drive motor 0.09kW
Speed hand tool 1650 – 4800min¯¹
Shaft diameter hand tool 3.1mm
Max. cutting height at +45° 20mm
Stroke speed 550 – 1600min¯¹
Table length 414mm
Table width 254mm
Saw blade length 133mm
Extension 405mm
Extraction duct outside nominal width 35mm
Length (product) approx. 630mm
Width/depth (product) approx. 290mm
Height (product) approx. 380mm
Net weight approx. 12kg
Supply voltage 230V
Absorbed power drive motor 0.09kW
Speed hand tool 1650 – 4800min¯¹
Shaft diameter hand tool 3.1mm
