Tehniskā specifikācijaFor a wide range of applications
Suitable for cutting, pressing, punching and embossing

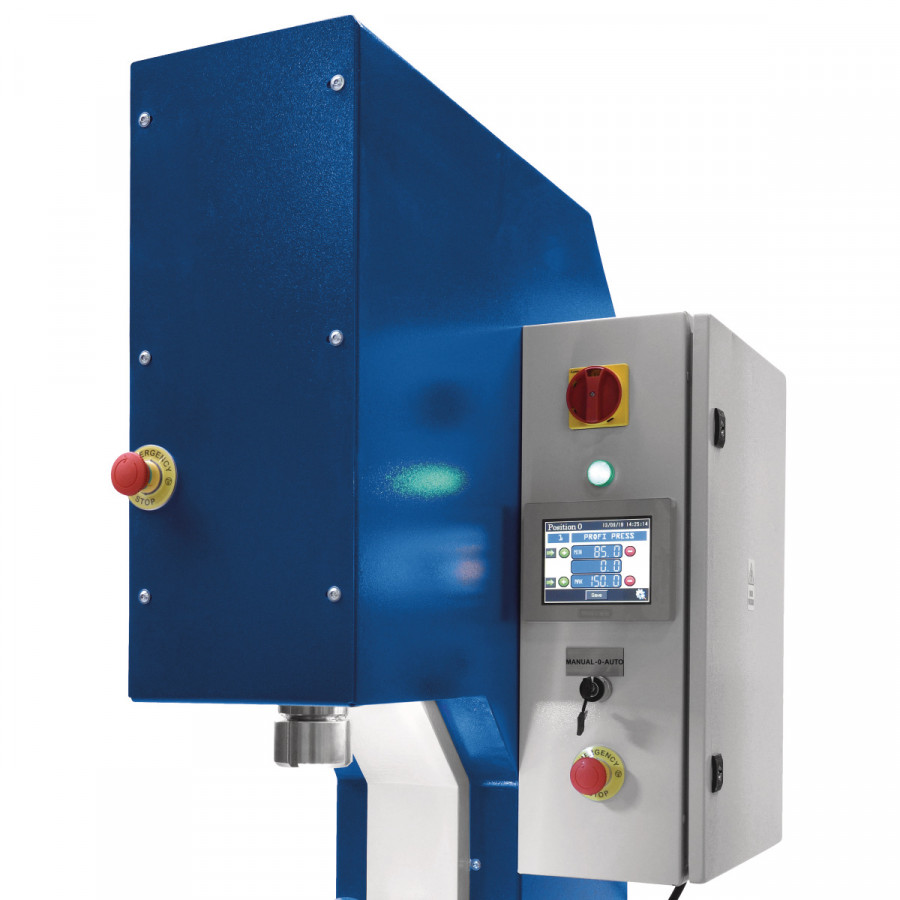

NC control for setting the piston stroke, pressure and holding time
Work table equipped with T-slots and a central hole (punching waste can fall unhindered into the collecting tray)

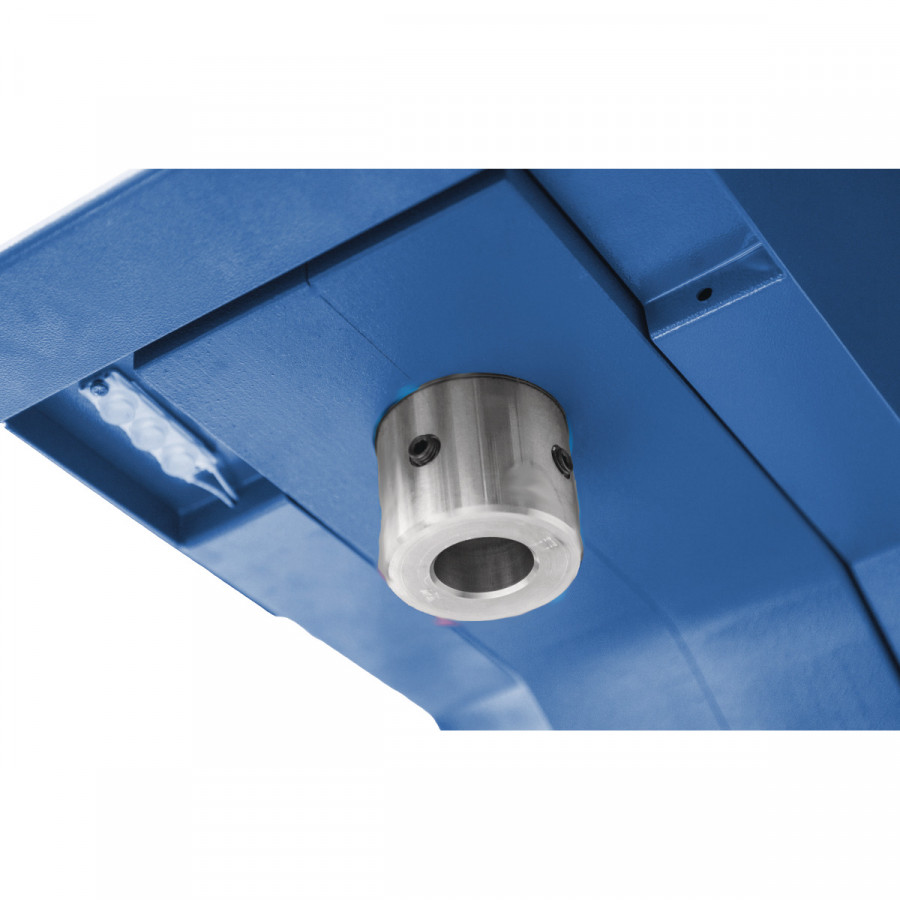

Piston with holder for clamping punches and tools
Selector switch for manual or semi-automatic operation

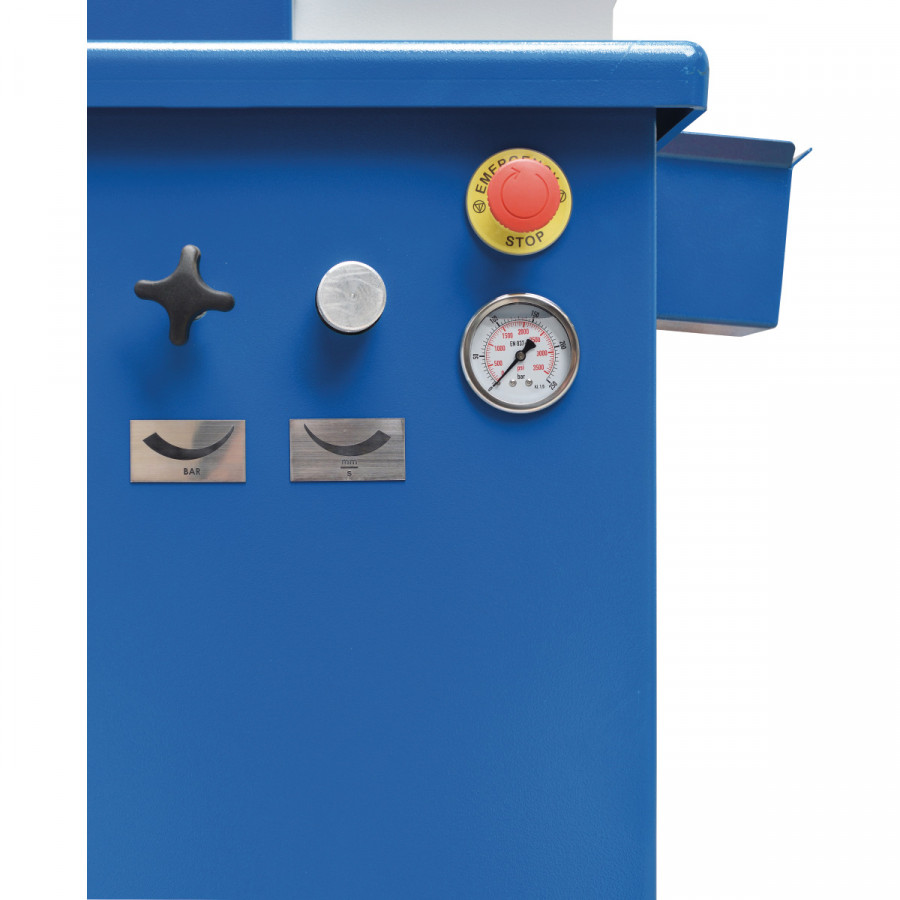

Press pressure readable via pressure gauge
Pressure force 28t
Piston stroke 150mm
Press speed 2 – 9.1mm/s
Return speed 13mm/s
Pressure regulation Manually with a knob
Length (product) approx. 850mm
Width/depth (product) approx. 750mm
Height (product) approx. 1980mm
Net weight approx. 650kg
Work table height 1067mm
Work table length 325mm
Work table width 300mm
Clear height max. 280mm
Drive motor output 4kW
Supply voltage 400V
Mains frequency 50Hz
