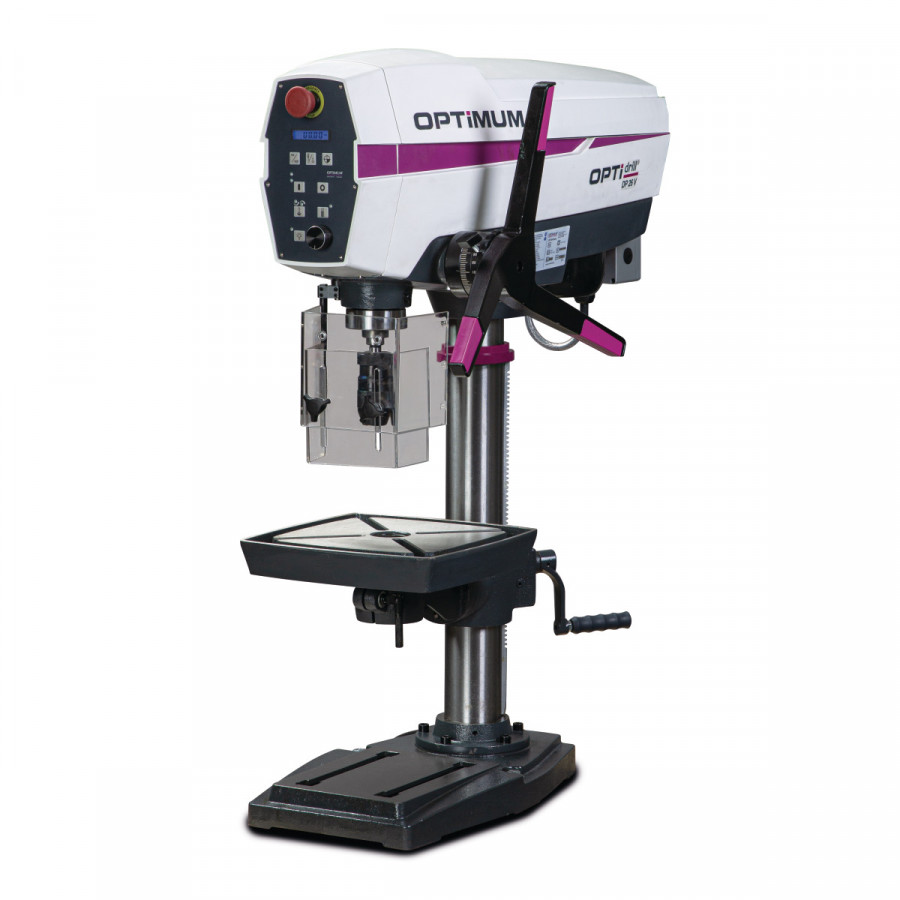

Galda urbjmašīna OPTIdrill DP 26V-T 400V, Optimum
Produkta kods:3020675T&OPTIMUM
Tehniskā specifikācijaDrilling performance steel (S235JR) 25 mm
Continuous drilling performance steel (S235JR) 20 mm

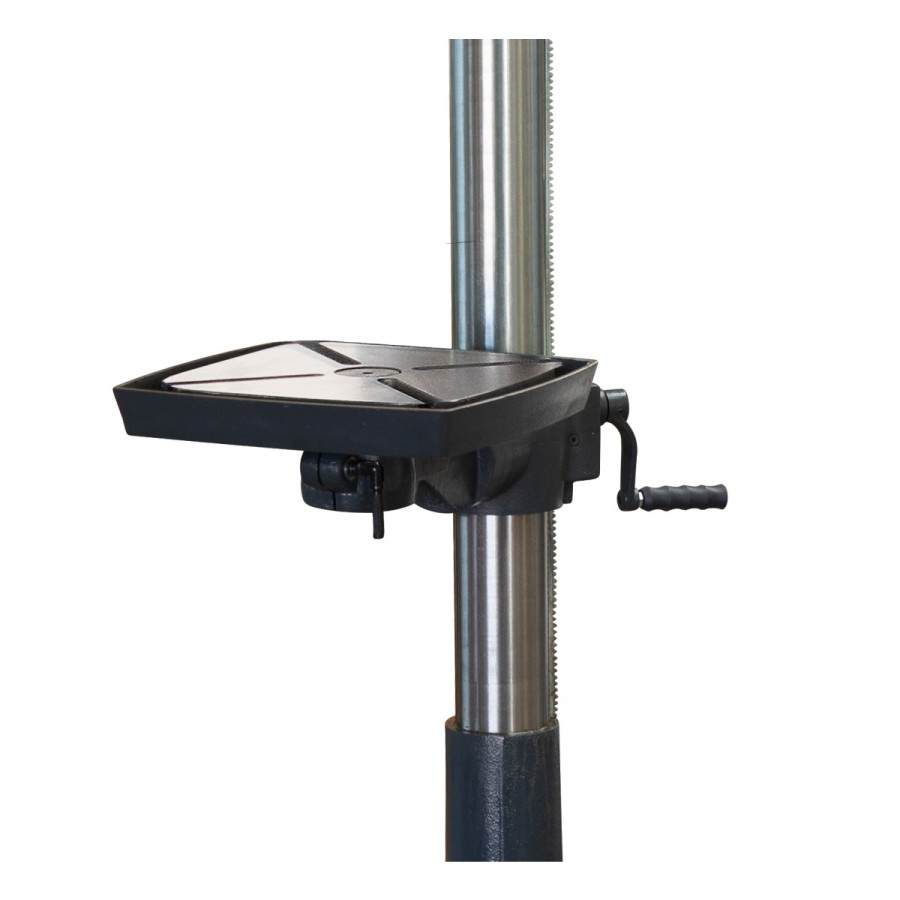

Drilling table 308x308mm
T-groove type diagonal
T-groove size 12 mm
Max. distance spindle - drilling table 400 mm
Drive motor output 0.75kW
Supply voltage 400 V
Max. distance spindle - machine base 592 mm
Speed range 60–3050 min¯¹, electronically adjustable
Number of gears 12 Steps
Spindle quill stroke 95 mm
Spindle chuck MT 3
Reach 209 mm
NB. Operation on a type A residual current device is not possible. You can find more information in this FAQ:
https://support.industry.siemens.com/cs/document/49232264/micromaster-4-(mm4)-sinamics-g110-sinamics-v20%3A-operation-on-a-type-a-residual-current-circuit-breaker-?dti=0&lc=en-WW
Continuous drilling performance steel (S235JR) 20 mm
Drilling table 308x308mm
T-groove type diagonal
T-groove size 12 mm
Max. distance spindle - drilling table 400 mm
Drive motor output 0.75kW
Supply voltage 400 V
Max. distance spindle - machine base 592 mm
Speed range 60–3050 min¯¹, electronically adjustable
Number of gears 12 Steps
Spindle quill stroke 95 mm
Spindle chuck MT 3
Reach 209 mm
NB. Operation on a type A residual current device is not possible. You can find more information in this FAQ:
https://support.industry.siemens.com/cs/document/49232264/micromaster-4-(mm4)-sinamics-g110-sinamics-v20%3A-operation-on-a-type-a-residual-current-circuit-breaker-?dti=0&lc=en-WW
