Exact PipeCut 460 Pro Series 100 mm – 460 mm, EXT
Produkta kods:7020460&EXT
Tehniskā specifikācijaThe largest gripper pipe saw in the Exact Tools Pro Series range.
PipeCut 460 Pro Series 2.0 is a groundbreaking and highly advanced pipe cutting machine in Exact’s Pro Series family. Designed for heavy-duty cutting of large and medium pipes, it delivers straight, precise cuts on all pipe materials. The blade depth adjustment mechanism comes standard for effortless operation.
Like all Exact machines, it is extremely safe and easy to use thanks to its well-designed mechanics. Portable and lightweight, it can be easily carried to the worksite.
It can cut steel pipes with wall thicknesses up to 20 mm (0.8”) and plastics up to 50 mm (2”).
With over 20 years of expertise in developing pipe cutting and finishing tools, Exact has created some of the most advanced pipe cutting systems ever made. Tens of thousands of users worldwide trust our machines, which provide a unique and superior solution for cutting pipes from small to medium-large diameters.
The powerful motor, patented gripping unit, and other advanced features make the machine a true timesaver on the jobsite, boosting productivity and freeing up time for other tasks.
The Benefits
User-friendly, extremely easy, safe, and convenient to use.
Efficient, extremely fast cuts.
Improved precision with traffic light system.
Laser indicator for cutting point accuracy.
Blade depth adjustment mechanism.
Cuts steel pipes with wall thicknesses up to 20 mm
Can be converted into a Cut&Bevel machine with the Cut&Bevel package for Pro Series (sold separately).
Designed in Finland, made in the EU

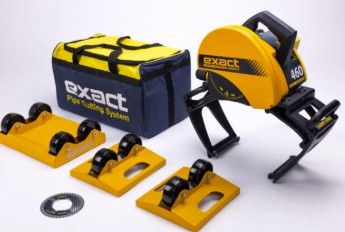

Standard package includes
Shoulder bag
PipeCut 460 Pro Series 2.0 pipe saw
Pipe supporters: 1 × Double and 2 × Single
Operating instructions
Hex socket keys 5 mm and 2 mm (fitted to the machine)
Cermet 165 blade (fitted to the machine)
Technical Specifications
Voltage
110 V220 V
Units
MetricImperial
Product number
7020460
Pipe material
Steel, Stainless/Inox, Cast iron, Glass fiber, Aluminium, Copper, Plastics.
Pipe OD
100 mm - 460 mm
Max. wall thickness
20 mm (steel), 50 mm (plastics)
Power
2500 W
No-load speed
I (low) = 1900 r/min, II (high) 2900 r/min
Blade diameter
140 mm, 165 mm, 180 mm, 190 mm
Mounting bore
62 mm
Weight
17.7 kg
Electronical unit
Blade speed preselection, overload protection, soft start, torque control
Loading capacity of supports
465 kg
