Electronic Inclinometer for Mercedes, Haweka
Produkta kods:913009084&HWK

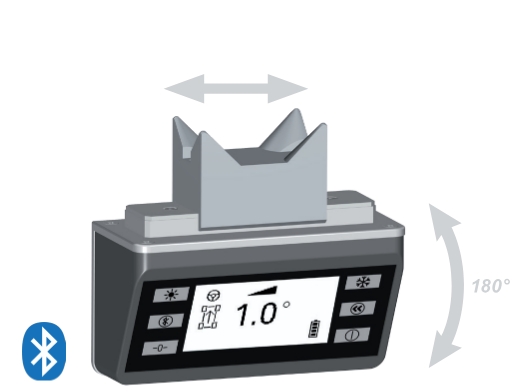

Tehniskā specifikācijaThe inclinometer is used to record angle values for Mercedes-Benz vehicles for exact wheel alignment. It can be
used flexibly, the crown adapter can be moved laterally. In
addition, the inclinometer can be rotated through 180 °.
The device enables measurement of the inclination angle
of the transverse control arm or the drive shaft to the horizontal. The values determined can be sent via Bluetooth
to electronic wheel alignment systems for further input and
are used to set the camber, toe and caster.
The adapters are applied on the following vehicle
types:
Cavity adapter
Mercedes E-Class on the control arm
Crown adapter
Mercedes A class, C class, S class, E class (Type
W210 und W211), C class CLA (Type 117), Citan
(Type 415, only rear axle)
Angle adapter
Mercedes Vaneo (Type 414, 2001 - 2005)
Measuring adapter
Mercedes Citan (Type 415, only front axle)
Adapter plate
Mercedes CLK (Type 208, 1997 - 2003), C class
(Type 202, 1993 - 2001)
