Electro-hydraulic press 75t WPP 75 HMC, Unicraft
Produkta kods:6301076&UC
Tehniskā specifikācijaElectro-hydraulic press with a pressing force of up to 75 t
Sturdy welded construction

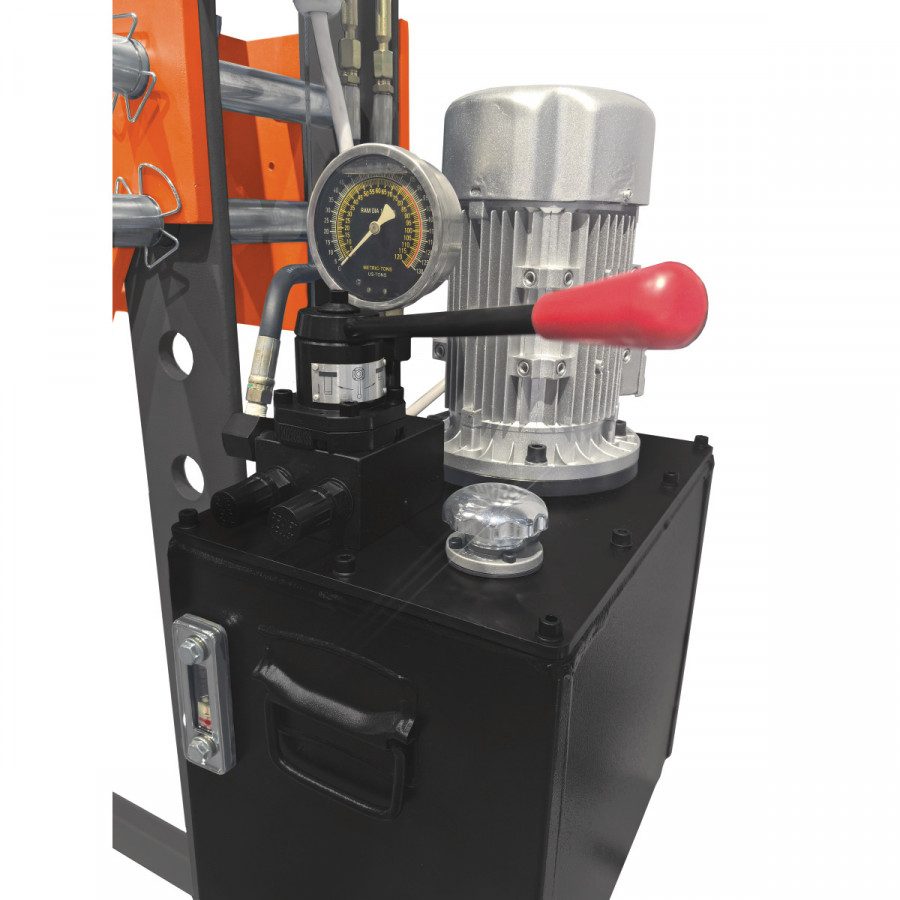

Pressing pressure can be read via pressure gauge

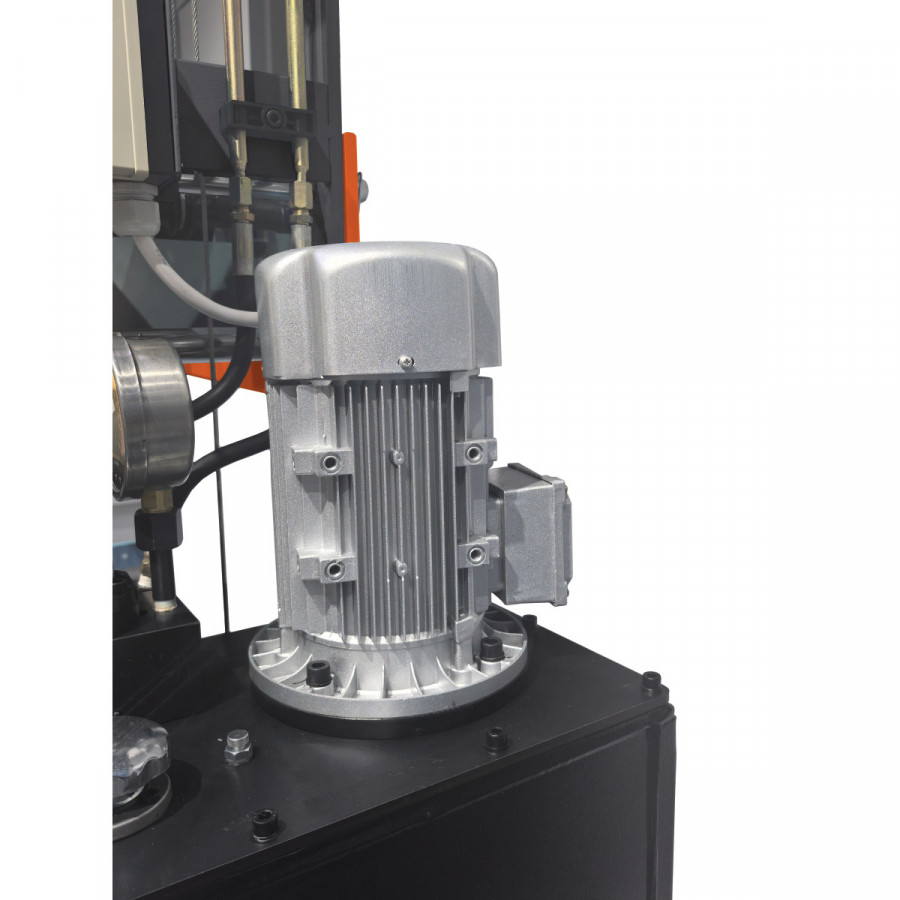

Faster pressing processes than standard hydraulic presses thanks to integrated electric motor

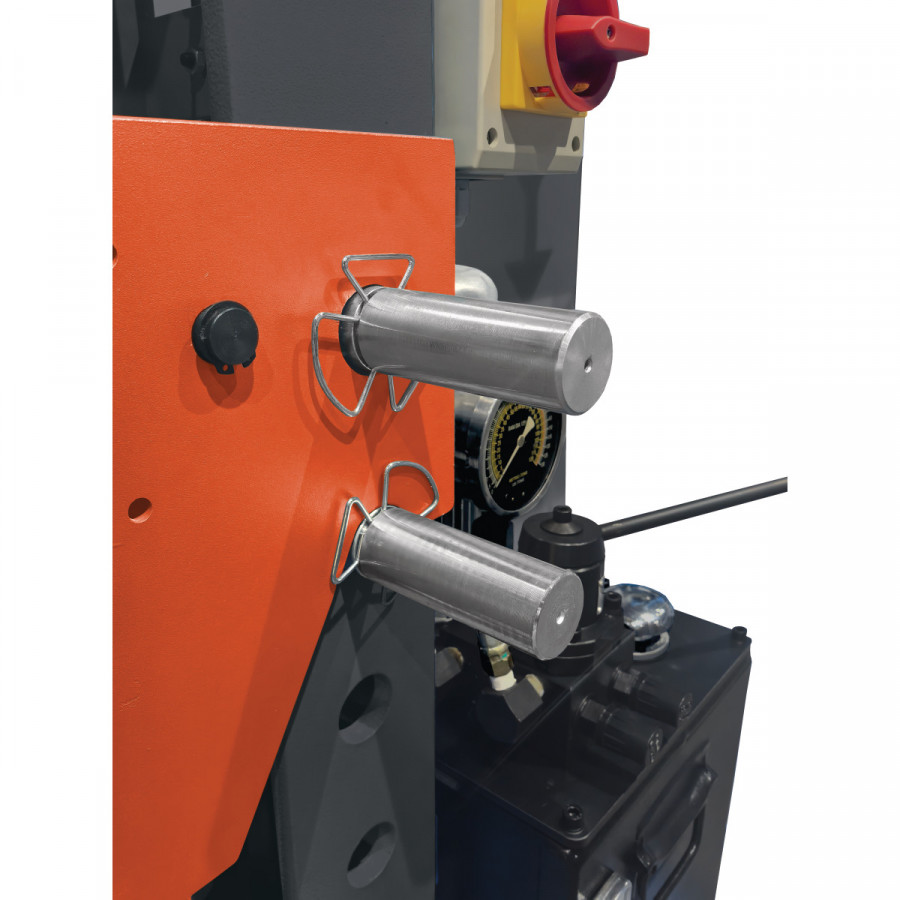

Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
Pressure force 75t
Piston stroke 250mm
Piston travel 260mm
Press speed 7mm/s
Length (product) approx. 1146mm
Width/depth (product) approx. 800mm
Height (product) approx. 1925mm
Net weight approx. 418kg
Frame depth 800mm
Hole spacing for table height adjustment 217mm
Clear height max. 884mm
Clear height min. 169mm
Clear width 800mm
Diameter piston rod 93mm
Drive motor output 1,5kW
Supply voltage 400V
Mains frequency 50Hz
Motor speed 1400min¯¹
Hydraulic oil tank capacity 22l
Sturdy welded construction
Pressing pressure can be read via pressure gauge
Faster pressing processes than standard hydraulic presses thanks to integrated electric motor
Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more
Pressure force 75t
Piston stroke 250mm
Piston travel 260mm
Press speed 7mm/s
Length (product) approx. 1146mm
Width/depth (product) approx. 800mm
Height (product) approx. 1925mm
Net weight approx. 418kg
Frame depth 800mm
Hole spacing for table height adjustment 217mm
Clear height max. 884mm
Clear height min. 169mm
Clear width 800mm
Diameter piston rod 93mm
Drive motor output 1,5kW
Supply voltage 400V
Mains frequency 50Hz
Motor speed 1400min¯¹
Hydraulic oil tank capacity 22l
