compact theader SUPERTRONIC 2000E + VICE + BSPT R 1/2" - 3/4" - 1" - 1.1/4" - 1.1/2" - 2" + ROFIX + 8.0AH 18V ProCORE AM, Rothenberger
Produkta kods:1000004986&ROT
Tehniskā specifikācijaSUPERTRONIC 2000 E, BSPT R 1/2-2", 8Ah, EU AMPShare
The cordless hand-held electric tapping die for making pipe threads to EN 10226 (old DIN 2999) on steel pipes to DIN EN 10255 M-H.
* 4-fold faster return due to return gear * User-friendly operation thanks to large forward and reverse switch * Tight fit of the cutting heads thanks to direct mounting with snap ring lock * thread cutting close to the wall thanks to off-center cutting head holder * High and constant transmission torque at full load * Ideal for hard-to-reach areas (corners, shafts) * Secure hold in both directions of rotation thanks to hardened, prism-toothed counter-holder * Maintenance-friendly thanks to permanent lubrication and brushless mot
Product description

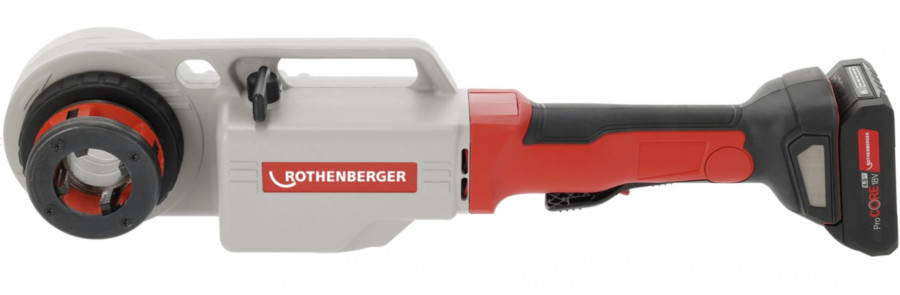

The SUPERTRONIC 2000 E AMPShare is the cordless hand-held electric tapping machine with a working range of 1/2-2 inch. Equipped with a powerful brushless motor, the SUPERTRONIC enables more efficient and material-friendly work. The tool-free Speed-Lock tapping head holder ensures quick insertion and a tight fit of the tapping heads. With up to 8 threads (2" BSPT) per battery charge and a compact rectangular design, this device is ideal for working in hard-to-reach areas and on workbenches. Plumbing, heating and air conditioning fitters produce pipe threads to EN 10226 (BSPT R) on steel pipes to DIN EN 10255 M-H.
Technical data
The most important facts at a glance
Battery number 1 Piece
Battery system Li-Ion / Li-Po battery (rechargeable)
Battery type Rechargeable
Type battery ProCORE
Thread type BSPT R
Thread cutting speed (min-max) 15 – 25 U/min
Sound pressure level with unit of measurement 100 dB(A)
Sound power level (LwA) with unit of measurement 87 dB(A)
Power consumption with unit of measurement 1.010 W
Speed Quick return with unit of measurement 58 U/min
Capacity battery with unit of measurement 8 Ah
Vibration with unit of measurement 3,02 m/s²

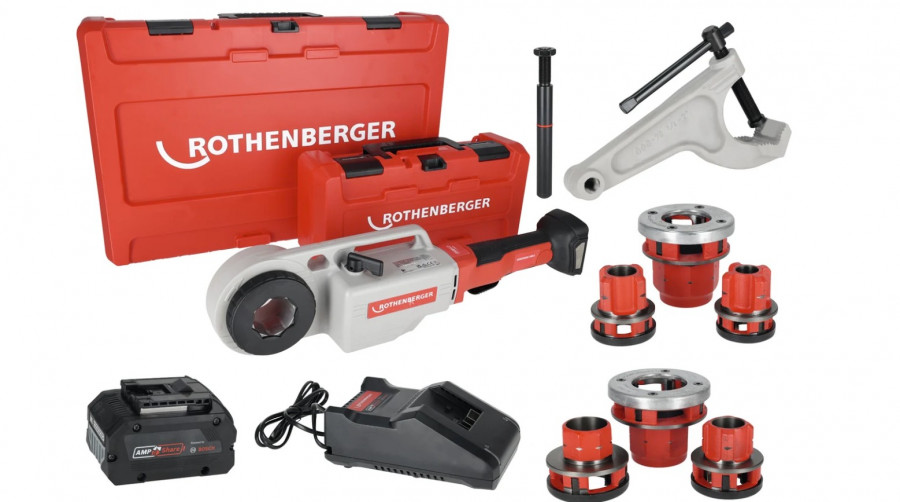

Scope of delivery
SUPERTRONIC 2000 E Basic Unit
Threading die head BSPT R 1/2"
Threading die head BSPT R 3/4"
Threading die head BSPT R 1"
Threading die head BSPT R 1.1/4"
Threading die head BSPT R 1.1/2"
Threading die head BSPT R 2"
Counterholder
ROFIX adapter
ROCASE 6414, with insert for SUPERTRONIC 2000 E and Threading die heads
8Ah 18 V AMPShare, ProCORE Battery
RO BC18 Charger, 230V, AMPS, EU
ROCASE 4212, with insert for 2x Battery, 1x Charger
Operating instructions
The cordless hand-held electric tapping die for making pipe threads to EN 10226 (old DIN 2999) on steel pipes to DIN EN 10255 M-H.
* 4-fold faster return due to return gear * User-friendly operation thanks to large forward and reverse switch * Tight fit of the cutting heads thanks to direct mounting with snap ring lock * thread cutting close to the wall thanks to off-center cutting head holder * High and constant transmission torque at full load * Ideal for hard-to-reach areas (corners, shafts) * Secure hold in both directions of rotation thanks to hardened, prism-toothed counter-holder * Maintenance-friendly thanks to permanent lubrication and brushless mot
Product description
The SUPERTRONIC 2000 E AMPShare is the cordless hand-held electric tapping machine with a working range of 1/2-2 inch. Equipped with a powerful brushless motor, the SUPERTRONIC enables more efficient and material-friendly work. The tool-free Speed-Lock tapping head holder ensures quick insertion and a tight fit of the tapping heads. With up to 8 threads (2" BSPT) per battery charge and a compact rectangular design, this device is ideal for working in hard-to-reach areas and on workbenches. Plumbing, heating and air conditioning fitters produce pipe threads to EN 10226 (BSPT R) on steel pipes to DIN EN 10255 M-H.
Technical data
The most important facts at a glance
Battery number 1 Piece
Battery system Li-Ion / Li-Po battery (rechargeable)
Battery type Rechargeable
Type battery ProCORE
Thread type BSPT R
Thread cutting speed (min-max) 15 – 25 U/min
Sound pressure level with unit of measurement 100 dB(A)
Sound power level (LwA) with unit of measurement 87 dB(A)
Power consumption with unit of measurement 1.010 W
Speed Quick return with unit of measurement 58 U/min
Capacity battery with unit of measurement 8 Ah
Vibration with unit of measurement 3,02 m/s²
Scope of delivery
SUPERTRONIC 2000 E Basic Unit
Threading die head BSPT R 1/2"
Threading die head BSPT R 3/4"
Threading die head BSPT R 1"
Threading die head BSPT R 1.1/4"
Threading die head BSPT R 1.1/2"
Threading die head BSPT R 2"
Counterholder
ROFIX adapter
ROCASE 6414, with insert for SUPERTRONIC 2000 E and Threading die heads
8Ah 18 V AMPShare, ProCORE Battery
RO BC18 Charger, 230V, AMPS, EU
ROCASE 4212, with insert for 2x Battery, 1x Charger
Operating instructions
