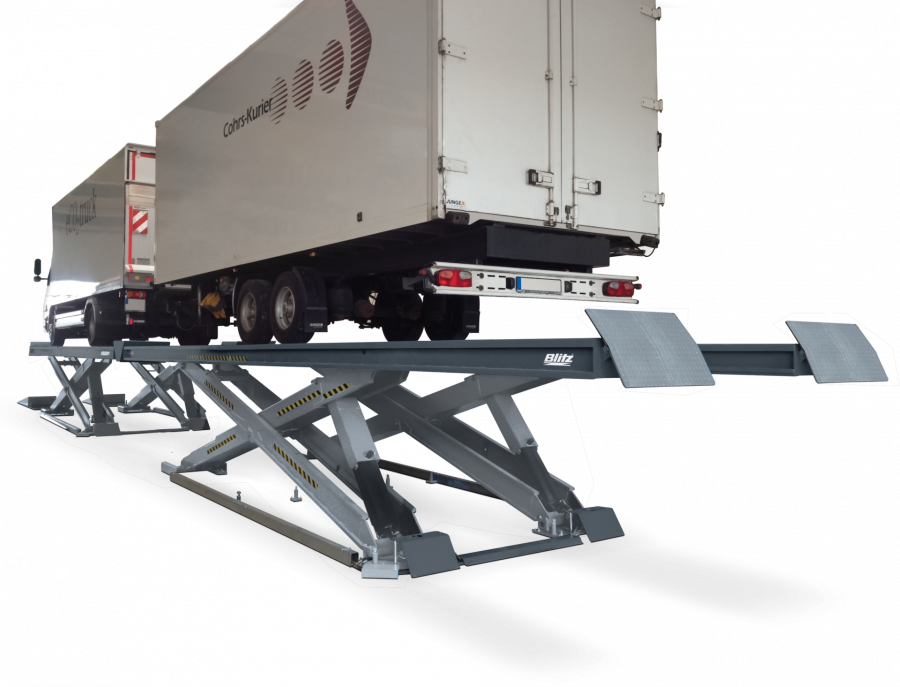

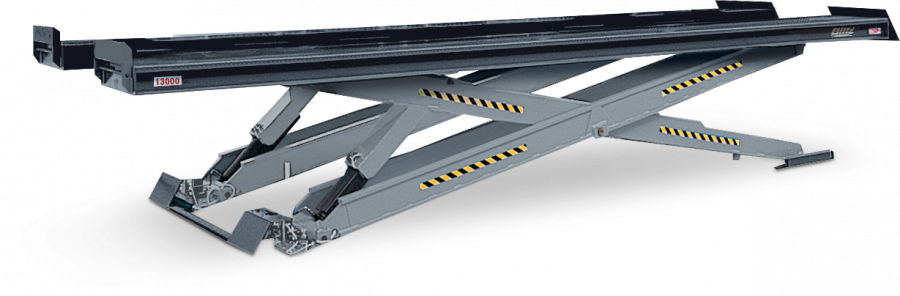

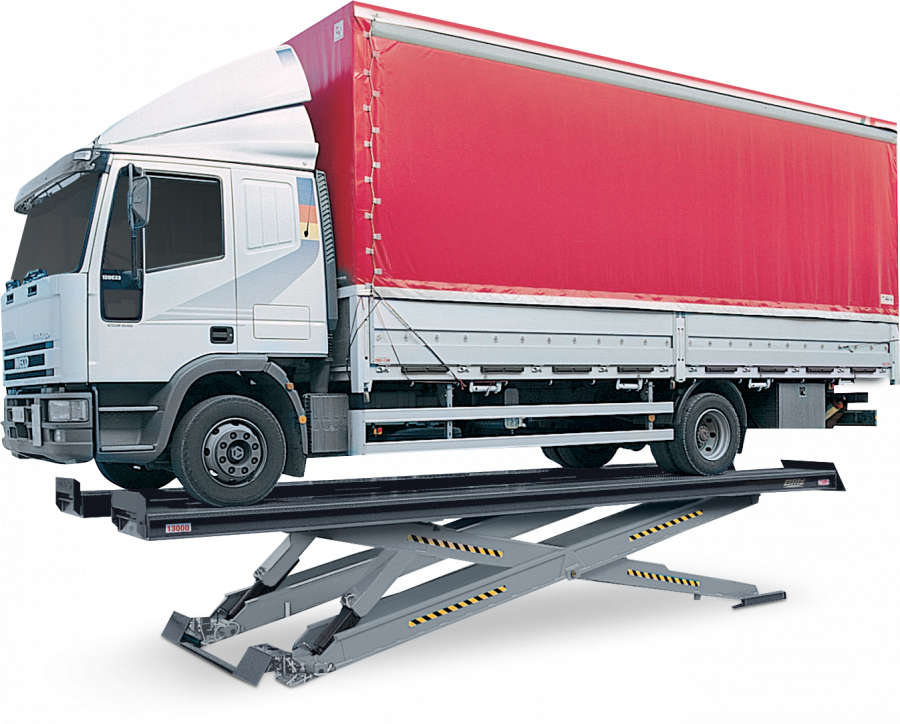

Commercial vehicle scissor lift S130-70I, Blitz
Produkta kods:830384&BLI
Tehniskā specifikācija13 t, elektro-hydraulic, platform length 7000 mm, inground
Scissor lift design: Scissors with runways
Mode of drive: electrohydraulic
Type of installation: surface mounted
Rated load capacity: 13000 kg
Stroke: 2040 mm
Max. lifing height at floor level: 1680 mm
Lifting time: 65 s
Lifting time loaded: 65 s
Lowering time: 60 s
Lowering time loaded: 60 s
Play detector: not possible
Drive-on-height: 360 mm
Wheel alignment: not possible
Length of runways: 7000 mm
Width of runways: 750 mm
Wheel free lift: not possible
Driving power: 3,5 kW
Power supply: 400 V | 50 Hz
Length: 7600 mm
Width: 2650 mm
Country of Origin, customs: IT
