Cable dismantling tool STX60 225mm, Knipex
Produkta kods:1645220&KNI

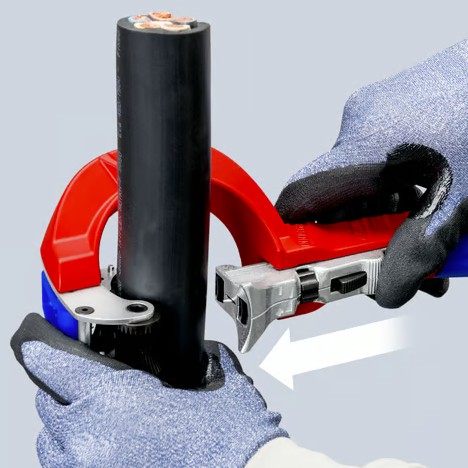

Tehniskā specifikācijaQuick stripping of cable sheaths from Ø 30 to 60 mm made of PVC, rubber or PUR by circumferential and longitudinal cuts
Single-handed quick adjustment enables the cutting blade to slide to any cable diameter from 30 to 60 mm with a single press of the thumb
Precision blade with adjustable cutting depth up to 6.5 mm for precise cutting results; even with tough insulation such as rubber hose cables (H07RN-F)
Completely retractable blade – protected during storage and transport

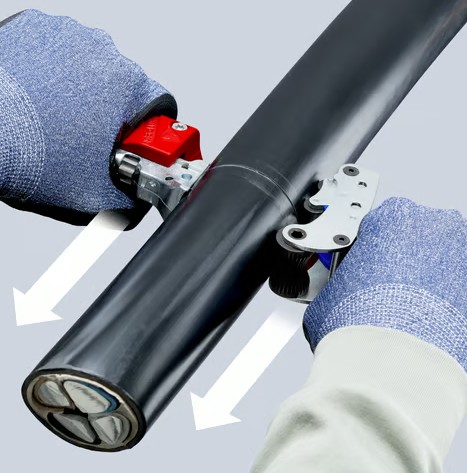

Two mechanisms for longitudinal cut: manually with blue fold-out pulling aid or with mechanical ratchet for effortless feed (ratchet not included)
Efficient and time-saving compared to conventional tools
Movable guide rollers for easier, precise longitudinal and circumferential cuts
Robust housing made of high-quality die-cast aluminium and innovative design for a long service life
Versatile – ideal for industrial, PV and wind power plants, shipbuilding and mobile power supply
Two spare blades stored in the handle – always at hand for uninterrupted work
Technical attributes
Part No.
16 45 220
EAN
4003773093060
Weight
600 g
Dimensions
225 x 90 x 78 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
1645220E01&KNI
Spare blades
For 16 45 220 (4x)
