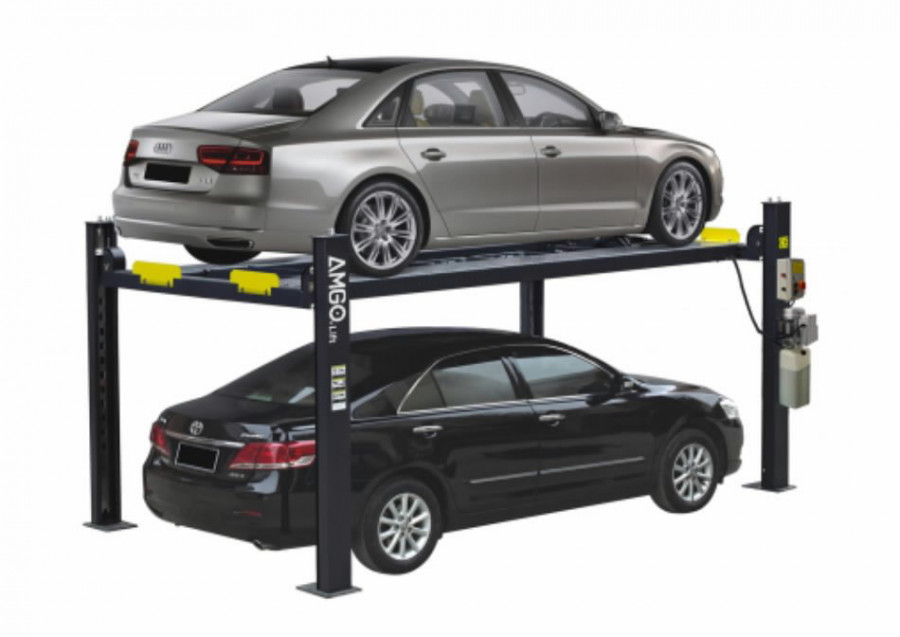

Tehniskā specifikācijaThe A430-P Series parking lifts are ideal for the average home garage, which also means one or more units will easily fit in commercial shops. These parking lifts will hold many light trucks and SUV, and their approach ramps are also well-suited for low-profile cars.
• AMGO exclusive hidden safety locks and manual single-point release
device allows operators to unlock the safety locks from one column.
• Double-S shaped columns help increase the columns’ strength.
• Skid proof diamond platform provides traction for the tires to stay put.
• Flexible design: The power side column can be installed at any corner.
• Portable design, can easily be moved by using the caster kits.
Lifting Capacity3000kg
Lifting Time31S

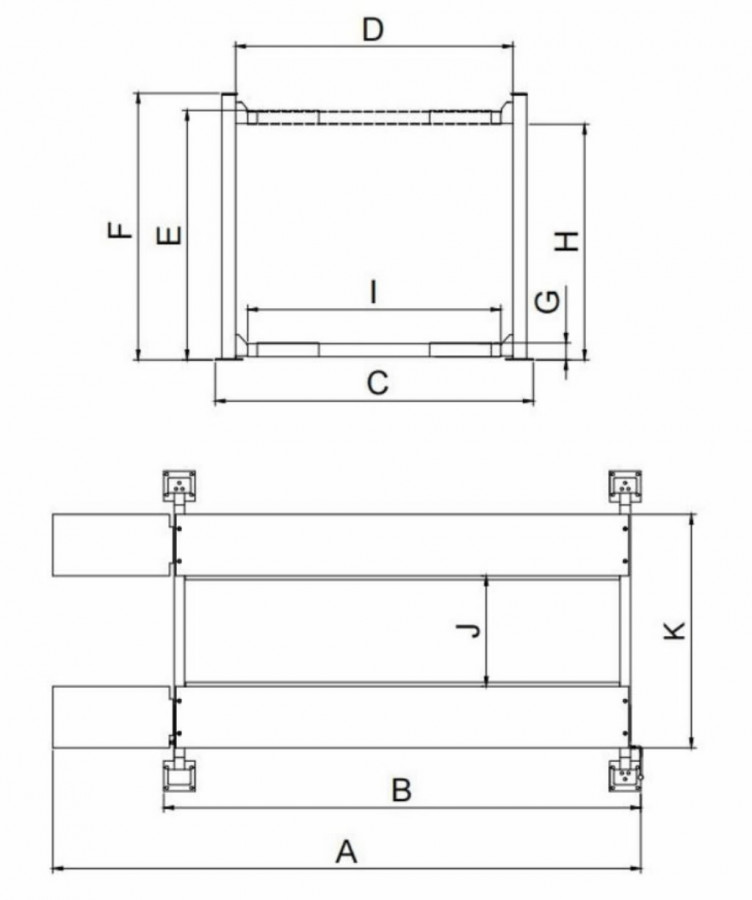

A: Overall Length (Inc Ramps)4712mm
B: Overall Length (No Ramps)3862mm
C: Overall Width2509mm
D: Width Between Columns2167mm
E: Max. Lifting Height1887mm
F: Overall Height2105mm
G: Minimum Height135mm
H: Max.Underneath Height1752mm
I: Drive-Thru Clearance1956mm
J: Width Between Runways940mm
K: Outside Edge of Runways1890mm
Gross Weight700Kg
Motor220V, 50Hz ,3.0HP
