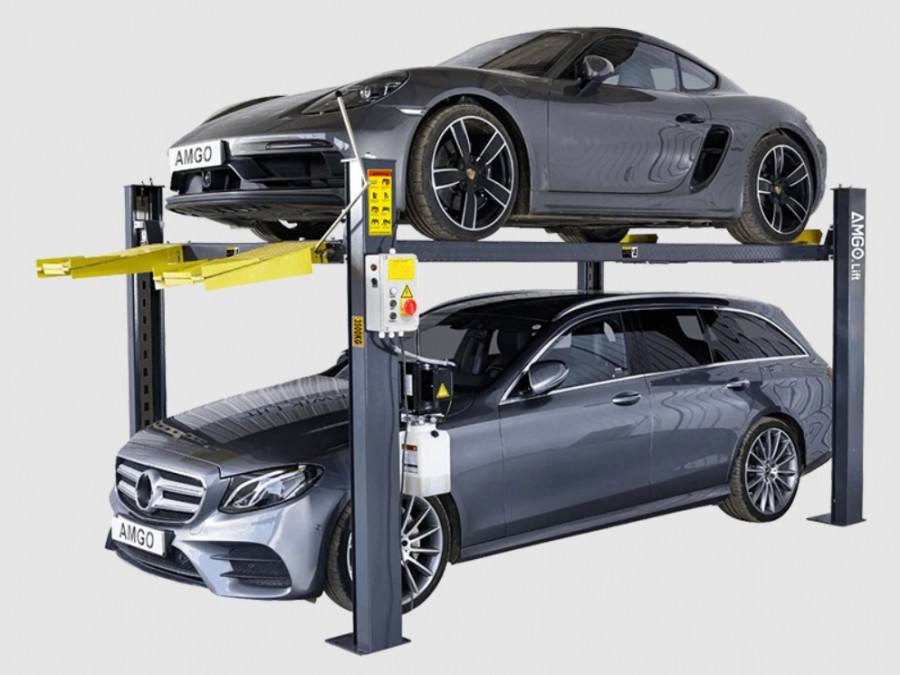

Tehniskā specifikācijaThe premium A435-P is another masterpiece in the AMGO range of commercial parking lifts. It boasts a 3500KG lifting capacity, featuring a wider built to enhance the versatility to suit more vehicles. Same as others in the range, It also features double locks and patented concealed lock control to ensure stability and durability.
Model A435-P
Lifting Capacity 3500kg
Lifting Time 40s

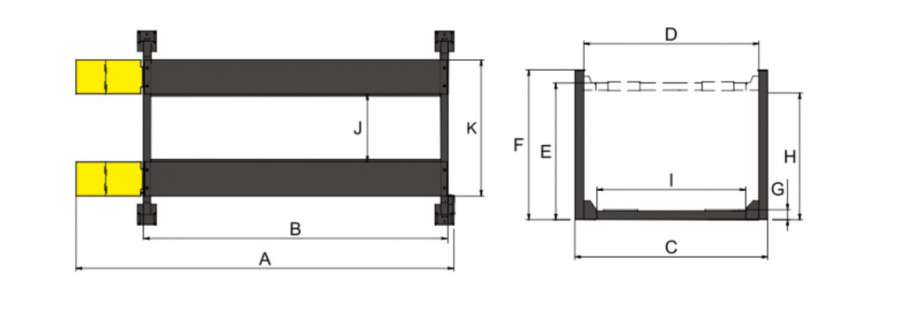

Overall length (Inc Ramps)A 5285mm
Outside edge of crossbeams B 4258mm
Overall Width C 2604mm
Width between Posts D 2358mm
Max. Lifting Height E 1872mm
Max. Locking Height 1802mm
Overall Height F 2105mm
Minimum Height G 145mm
Max. Underneath Height H 1752mm
Max. Lock Underneath runway 1682mm
Drive-Thru Clearance I 2074mm
Width Between Runways J 940mm
Outside Edge of Runways K 1890mm
Gross Weight 715kg
Motor 3.0HP
