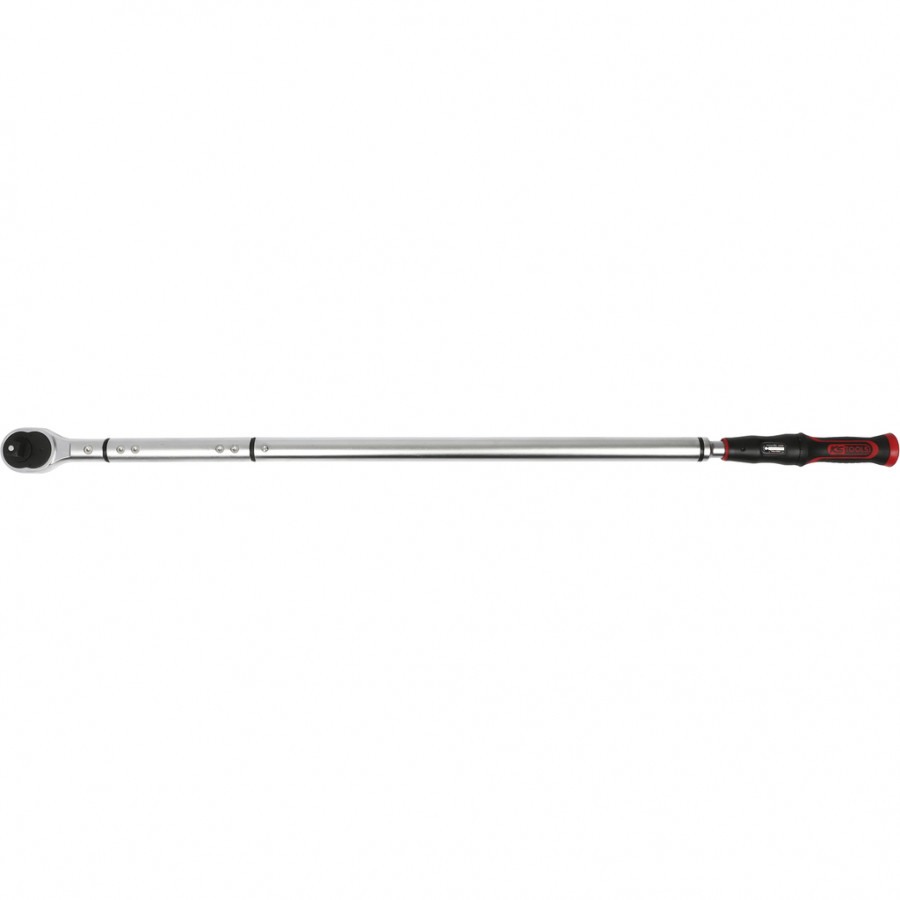

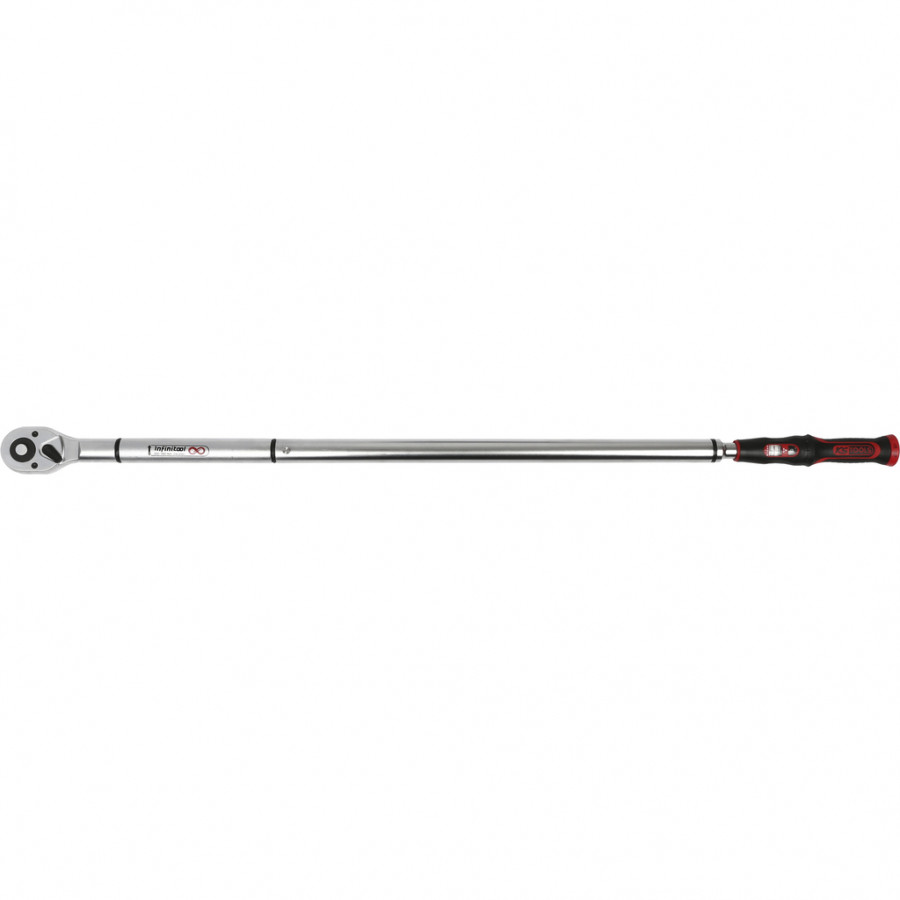

3/4" INFINITOOL torque wrench with reversible ratchet head 3/4" 150-750 Nm, KS Tools
Produkta kods:516.9093&KST
Tehniskā specifikācijaTriggering accuracy: ±3% tolerance from the set scale value with clockwise tightening
Triggering accuracy: ±6% tolerance from the set scale value with counter-clockwise tightening
precise reading accuracy for a minimum 5.000 tightening cycles
for controlled fastening in clockwise and counter clockwise directions

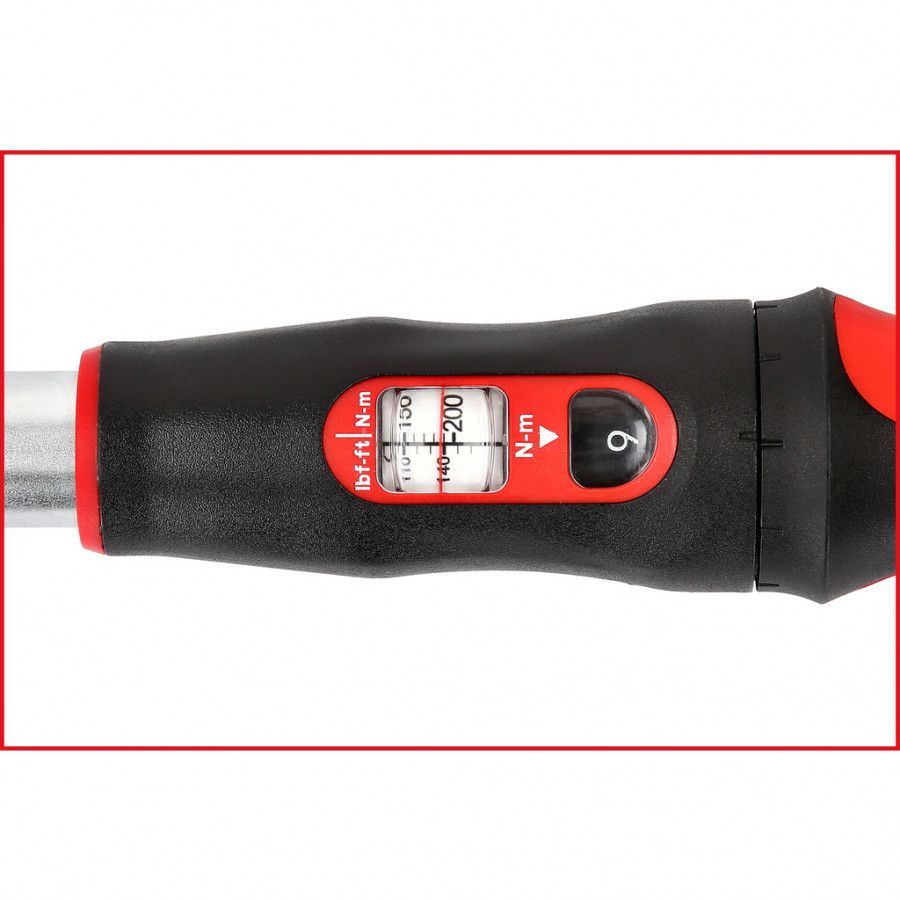

double scale in Nm and lbf•ft divisions for precise adjustment
includes micrometer scale in Nm divisions for precise and fine adjustment
large vision panel, precise adjustment using a magnifying glass
an audible and palpable signal when the desired torque value is achieved

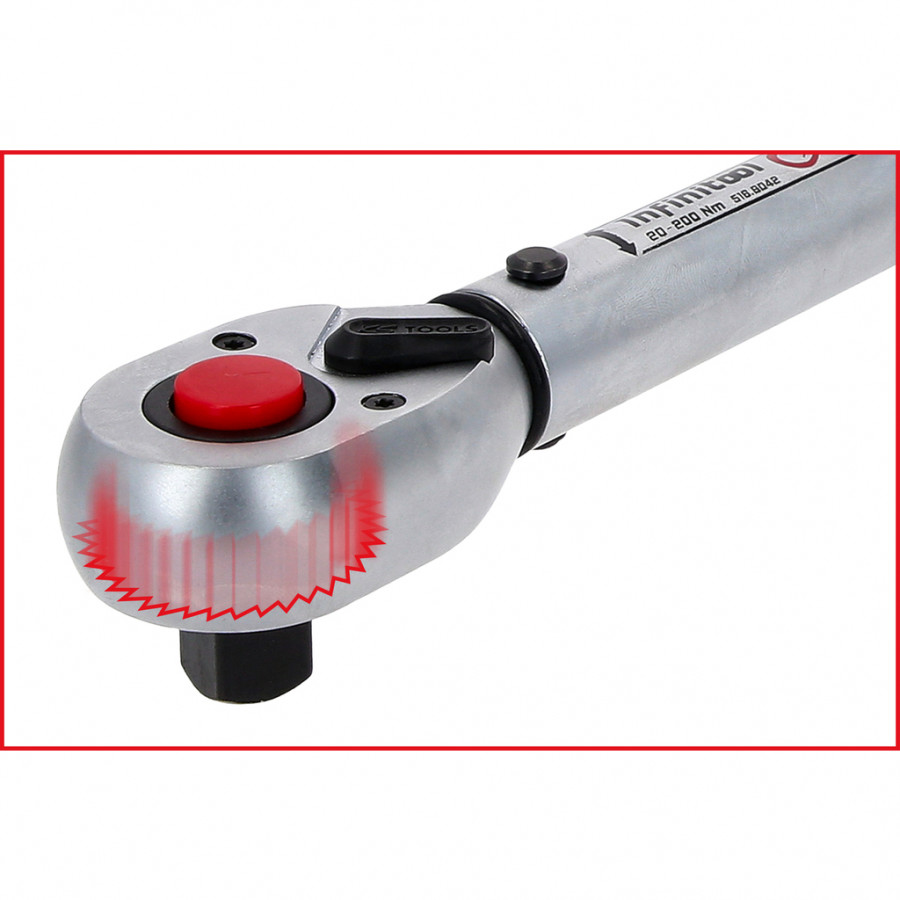

with exact gearing 36 teeth ratchet mechanism

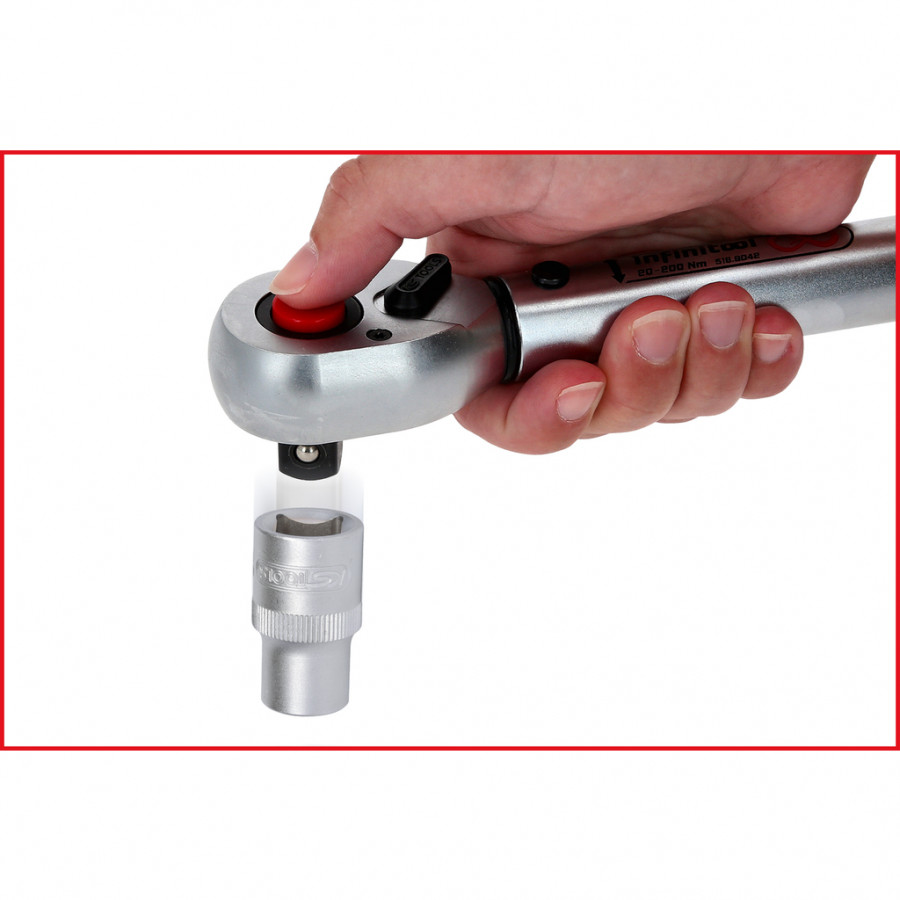

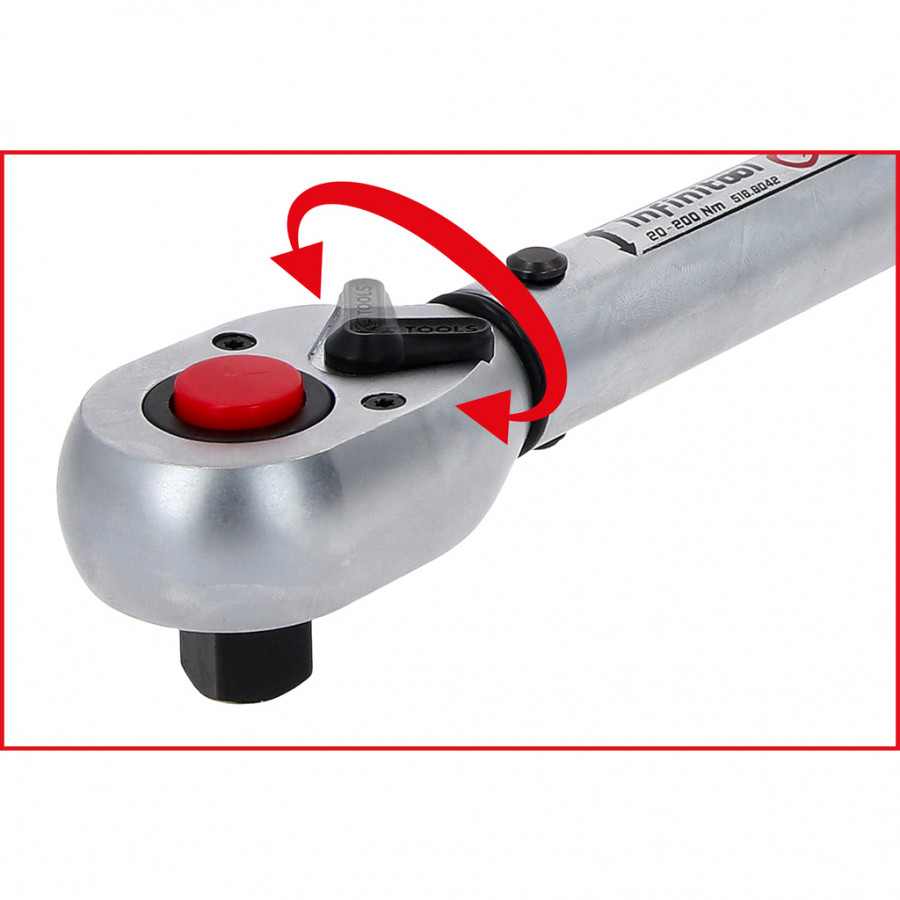

with ejection mechanism on the ratchet head

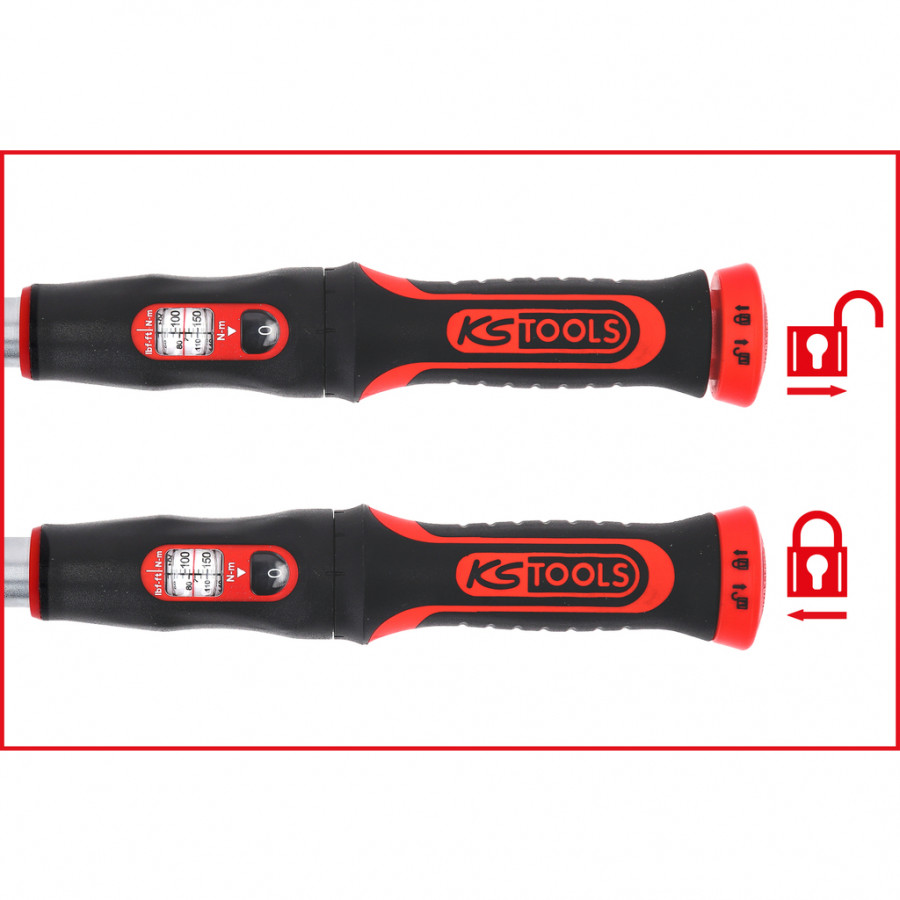

torque setting is quick and easy using the locking knob in the handle end
secure locking function within the handle
two component handle with a soft zone, is ergonomic in design and comfortable in the hand
square drive adaptor to DIN 3120 / ISO 1174 with ball lock
individually marked with serial number - unique product identification
including calibration declaration of conformity according to DIN EN ISO 6789:2017(E) - traceable to national standards

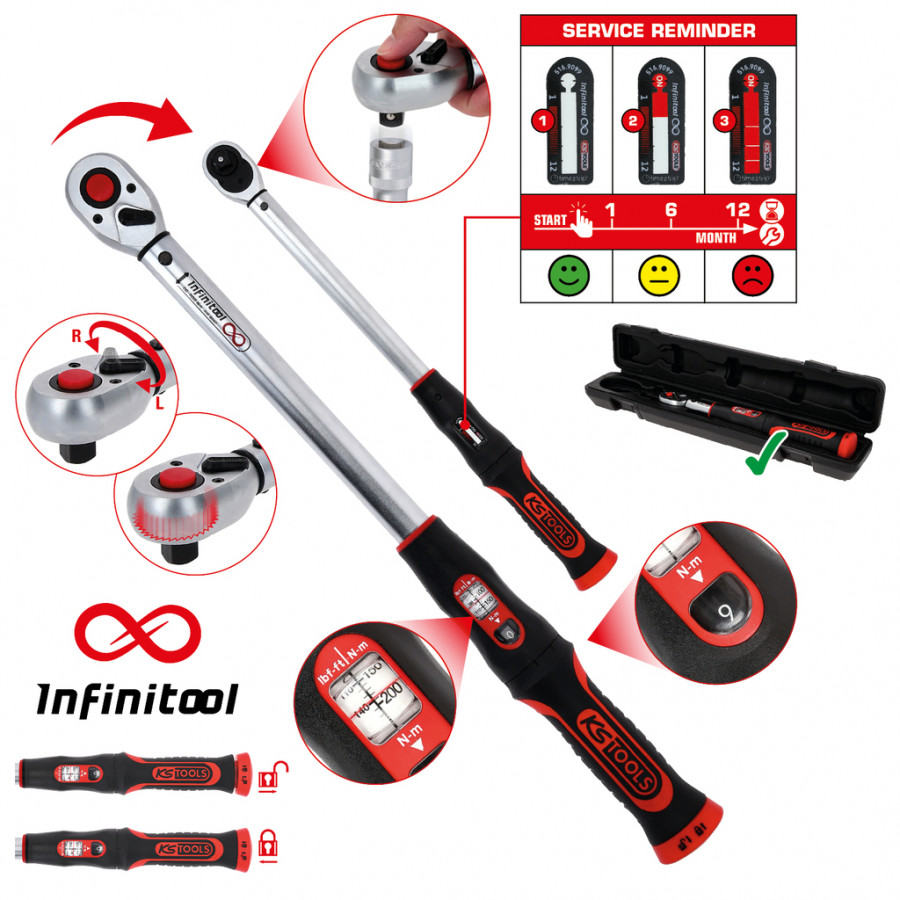

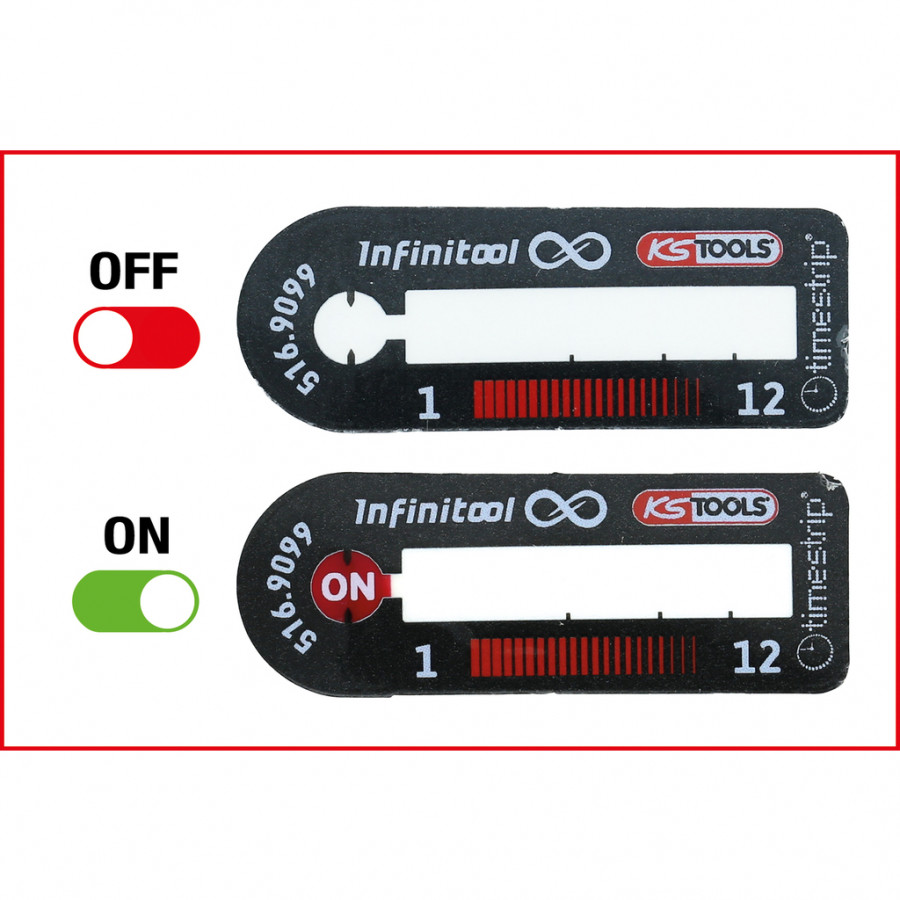

Including service reminder

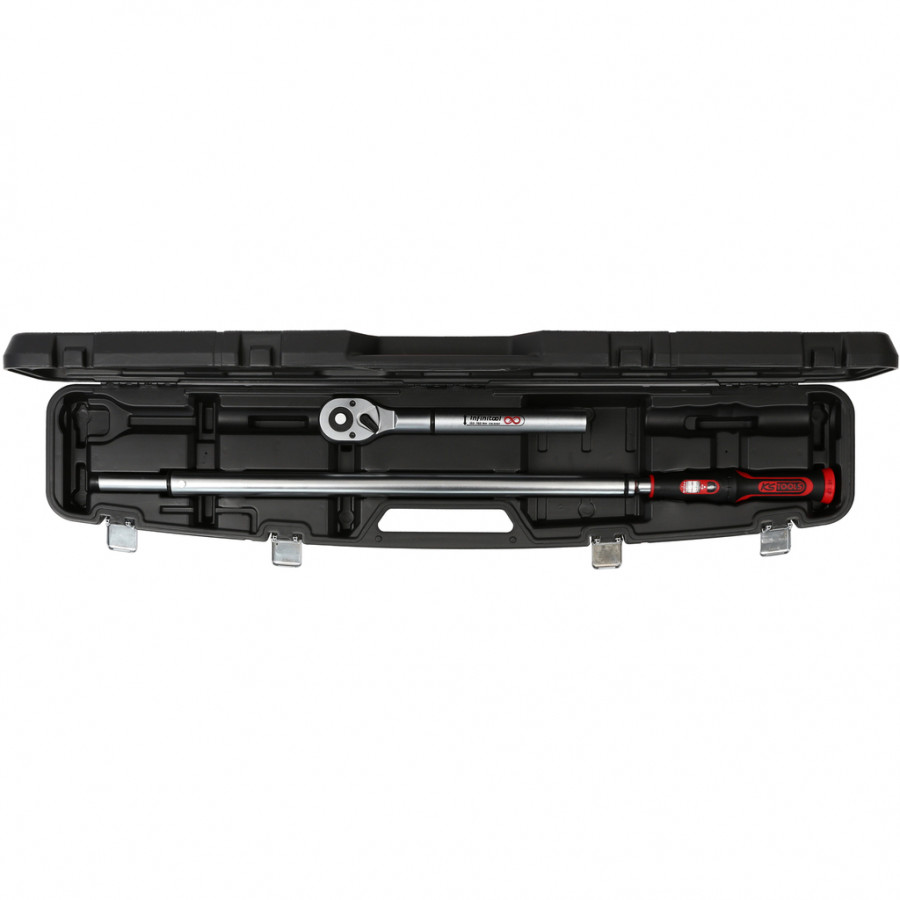

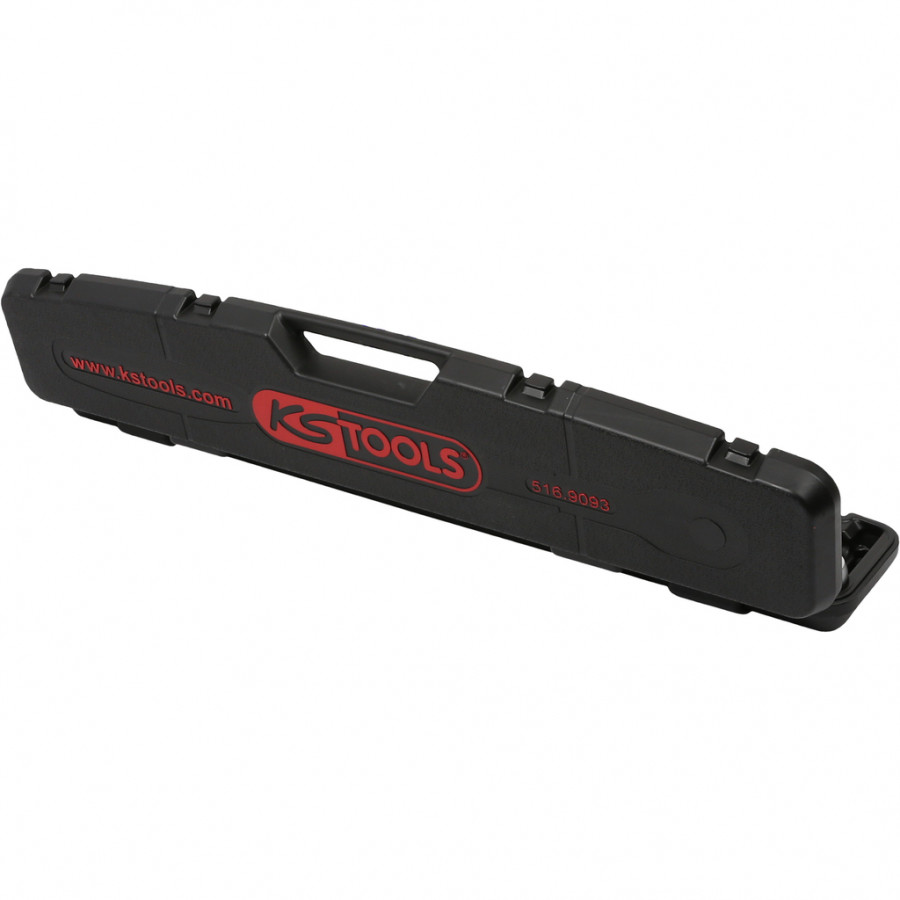

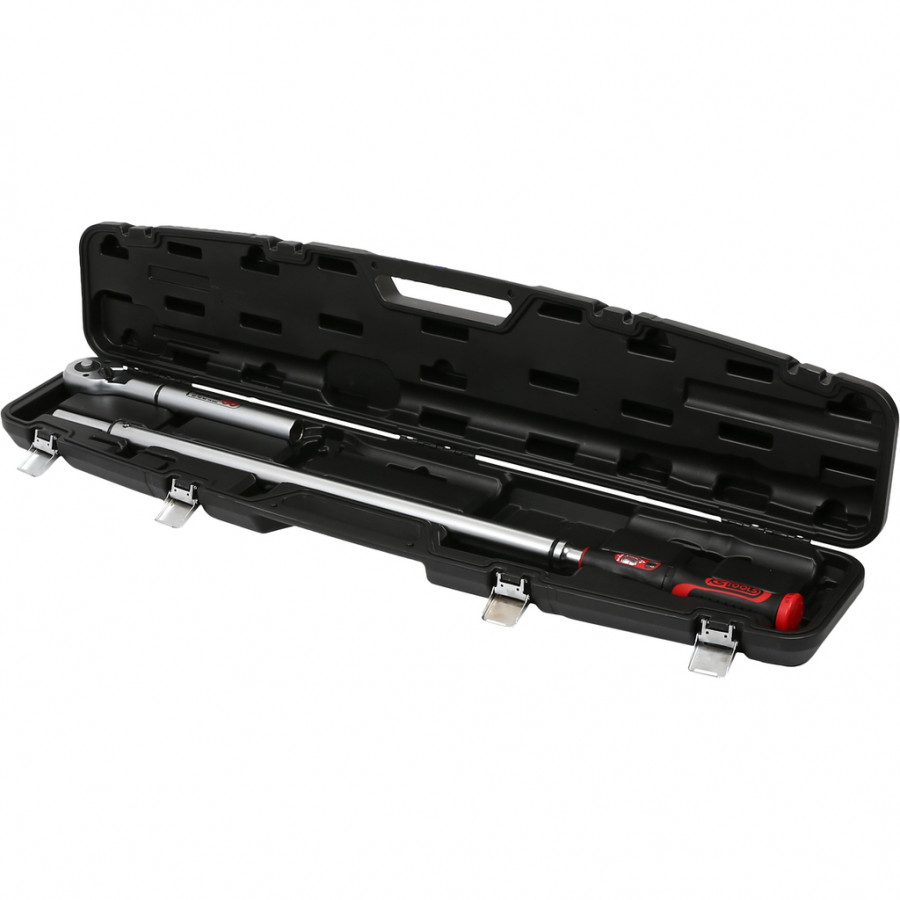

in durable plastic storage case
Properties
Construction: one-armed lever
Handle: 2 component handle
Norm: DIN 3120, ISO 1174, DIN EN ISO 6789-1:2017(E)
Packaging contents: 1
Readout: scale
Tool holder torque: ratchet
Tooth: 36
