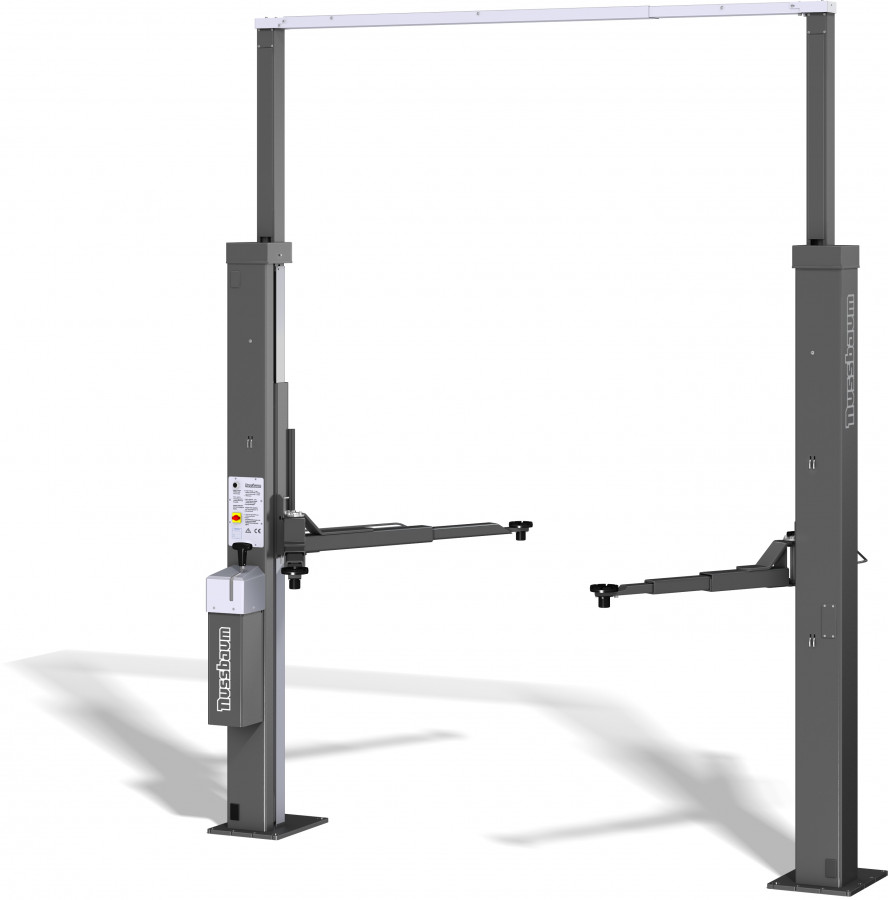

2-post lift POWER LIFT HF 3S 3500 EV with E-set RAL7016, Nussbaum
Produkta kods:HLNTK235.0000134D-7016&NB
Tehniskā specifikācijaTechnical specifications:
Capacity 3500kg
Lifting height 2005mm
Lifting time 23s
Lowering time 14s
Lowest lifting point 95-140mm
Long arm extraction 956-1496mm
Short arm extraction 608-1019mm
Drive through width 2498mm
Distance between columns 2746mm
Total width 3330mm
Total height of the column 4040mm
Required ceiling height 4182mm
Motor capacity 3kW
Power 400V/50Hz
Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted load can be controlled by lowering into and lifting from the park position using the safety latches.
Capacity 3500kg
Lifting height 2005mm
Lifting time 23s
Lowering time 14s
Lowest lifting point 95-140mm
Long arm extraction 956-1496mm
Short arm extraction 608-1019mm
Drive through width 2498mm
Distance between columns 2746mm
Total width 3330mm
Total height of the column 4040mm
Required ceiling height 4182mm
Motor capacity 3kW
Power 400V/50Hz
Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted load can be controlled by lowering into and lifting from the park position using the safety latches.
